ASTRA
18A81034

第三方数据ASTRA : 18A81034

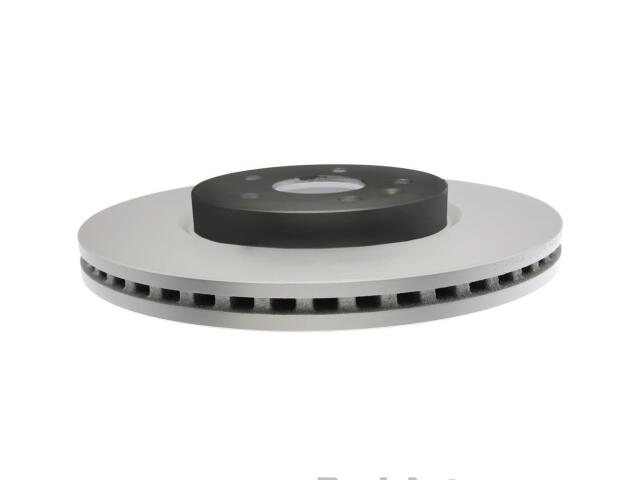

Rotor
ASTRA : 18A81034

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.362
Center Hole Diameter (MM): 60
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Coated
Discard Thickness (IN): 0.906
Discard Thickness (MM): 23
Height (IN): 12.1
Inside Diameter (IN): 7.083
Inside Diameter (MM): 179.9
Length (IN): 12.1
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.124
Mounting Bolt Hole Circle Diameter (MM): 104.75
Mounting Bolt Hole Diameter (IN): 0.561
Mounting Bolt Hole Diameter (MM): 14.25
Nominal Thickness (IN): 1.024
Nominal Thickness (MM): 26
Outside Diameter (IN): 11.811
Outside Diameter (MM): 300
Overall Height (IN): 1.791
Overall Height (MM): 45.5
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 19.18
Width (IN): 2.6

适用车型

BUICK (1)

CHEVROLET (2)

SONIC (1)

TRAX (2)

OE号码

品牌	号码
OE	1934037*
