ASTRA
18A81023

第三方数据ASTRA : 18A81023

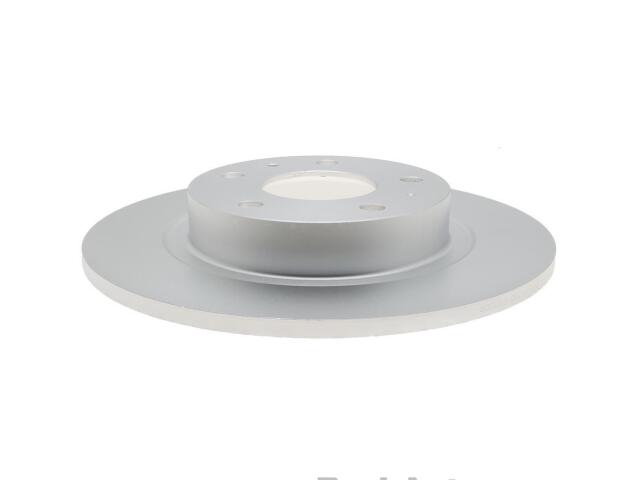

Rotor
ASTRA : 18A81023

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.68
Center Hole Diameter (MM): 68.05
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Coated
Discard Thickness (IN): 0.315
Discard Thickness (MM): 8
Height (IN): 1.8
Inside Diameter (IN): 7.339
Inside Diameter (MM): 186.4
Length (IN): 12.3
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.486
Mounting Bolt Hole Circle Diameter (MM): 113.95
Mounting Bolt Hole Diameter (IN): 0.512
Mounting Bolt Hole Diameter (MM): 13
Nominal Thickness (IN): 0.276
Nominal Thickness (MM): 7
Outside Diameter (IN): 10.929
Outside Diameter (MM): 277.6
Overall Height (IN): 1.555
Overall Height (MM): 39.5
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth
Weight (lb): 9
Width (IN): 11.5

适用车型

MAZDA (1)

OE号码

品牌	号码
OE	1932639*
