ASTRA
18A81021

第三方数据ASTRA : 18A81021

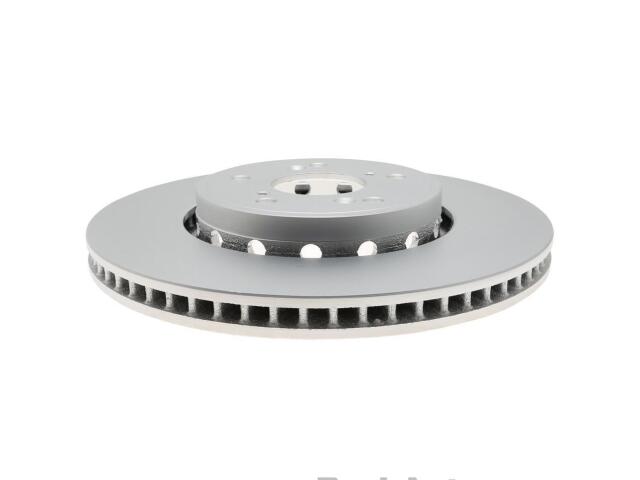

Rotor
ASTRA : 18A81021

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.1
Center Bore Diameter (IN): 2.5in
Center Bore Diameter (MM): 64.2mm
Center Hole Diameter (IN): 2.53
Center Hole Diameter (MM): 64.25
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Coated
Discard Thickness (IN): 0.906
Discard Thickness (MM): 23
Hat Finish: Turned
Height (IN): 1.9
Height (MM): 47.3
Inside Diameter (IN): 7.256
Inside Diameter (MM): 184.3
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.493
Mounting Bolt Hole Circle Diameter (MM): 114.1
Mounting Bolt Hole Diameter (IN): 0.496
Mounting Bolt Hole Diameter (MM): 12.6
Nominal Thickness (IN): 0.986
Nominal Thickness (MM): 25.05
Outside Diameter (IN): 12.272
Outside Diameter (MM): 311.7
Overall Height (IN): 1.862
Overall Height (MM): 47.3
Pad Contact Surface Width (IN): 2.5
Pad Contact Surface Width (MM): 63.7
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

ACURA (2)

OE号码

品牌	号码
OE	1932639*
