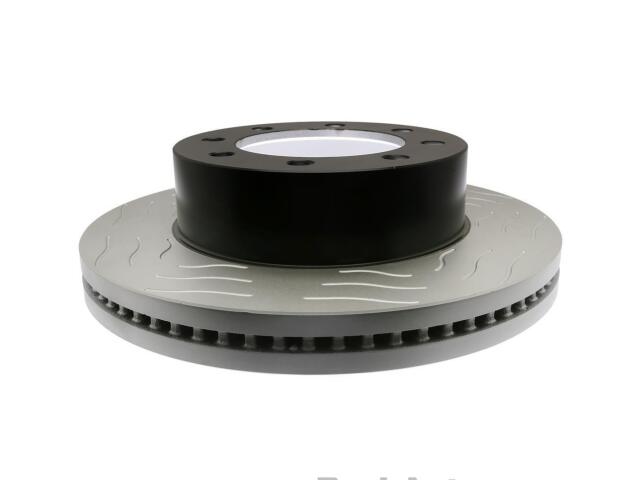

Rotor
ASTRA : 18A81016SD

Bolt Circle Diameter (IN): 6.752
Bolt Circle Diameter (MM): 171.5
Center Hole Diameter (IN): 5.082
Center Hole Diameter (MM): 129.1
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Bare
Discard Thickness (IN): 1.433
Discard Thickness (MM): 36.4
Height (IN): 3.941
Height (MM): 100.1
Inside Diameter (IN): 9.094
Inside Diameter (MM): 231
Length (IN): 14.8
Mounting Bolt Hole Circle Diameter (IN): 6.752
Mounting Bolt Hole Circle Diameter (MM): 171.5
Mounting Bolt Hole Diameter (IN): 0.634
Mounting Bolt Hole Diameter (MM): 16.1
Nominal Thickness (IN): 1.516
Nominal Thickness (MM): 38.5
Outside Diameter (IN): 14.293
Outside Diameter (MM): 363.05
Overall Height (IN): 3.941
Overall Height (MM): 100.1
Solid Or Vented Type Rotor: Vented
Weight (lb): 39.5
Width (IN): 14.8

适用车型

FORD (3)

F-250 SUPER DUTY (3)

6.2L V8 (10)

6.7L V8 DIESEL Turbocharged (10)

7.3L V8 (3)

F-350 SUPER DUTY (4)

6.2L V8 (10)

6.7L V8 DIESEL Turbocharged (11)

6.8L V8 (1)

7.3L V8 (4)

F-450 SUPER DUTY (2)

OE号码

品牌	号码
OE	1938361*
