ASTRA
18A81015

第三方数据ASTRA : 18A81015

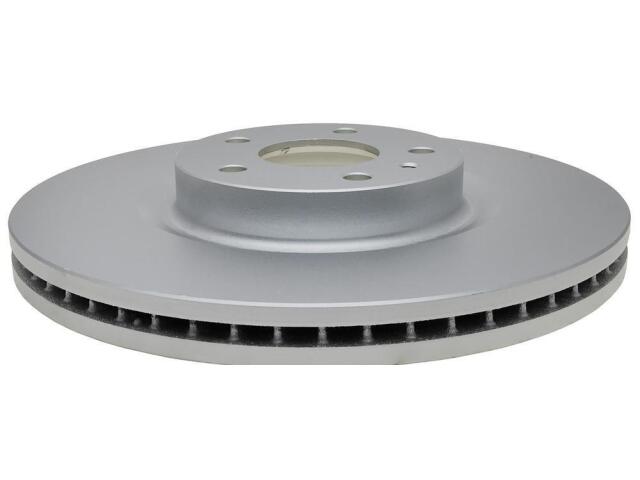

Rotor
ASTRA : 18A81015

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.3
Bolt Circle Diameter (MM): 108
Center Bore Diameter (IN): 2.5in
Center Bore Diameter (MM): 63.5mm
Center Hole Diameter (IN): 2.5
Center Hole Diameter (MM): 63.5
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Coated
Discard Thickness (IN): 1.043
Discard Thickness (MM): 26.5
Hat Finish: Turned
Height (IN): 2
Height (MM): 51.2
Inside Diameter (IN): 7.52
Inside Diameter (MM): 191
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.252
Mounting Bolt Hole Circle Diameter (MM): 108
Mounting Bolt Hole Diameter (IN): 4.252
Mounting Bolt Hole Diameter (MM): 108
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28
Outside Diameter (IN): 12.441
Outside Diameter (MM): 316
Overall Height (IN): 2.014
Overall Height (MM): 51.15
Pad Contact Surface Width (IN): 2.5
Pad Contact Surface Width (MM): 62.5
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

FORD (1)

LINCOLN (1)

OE号码

品牌	号码
OE	1932545*
