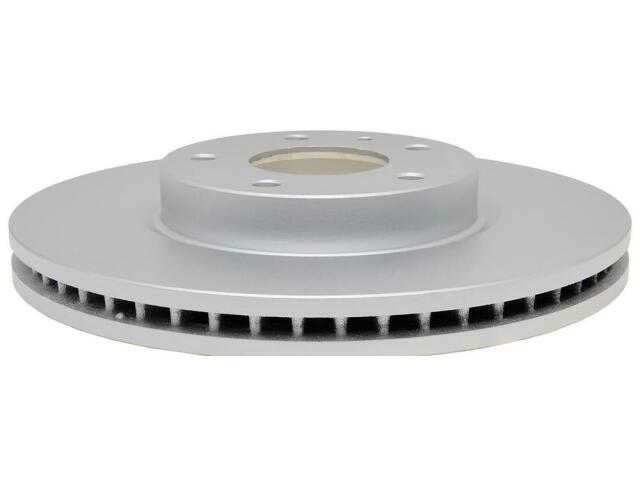

Rotor
ASTRA : 18A81011

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.6
Center Bore Diameter (IN): 2.7in
Center Bore Diameter (MM): 68mm
Center Hole Diameter (IN): 2.68
Center Hole Diameter (MM): 68.05
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Coated
Discard Thickness (IN): 1.024
Discard Thickness (MM): 26
Hat Finish: Turned
Height (IN): 2
Height (MM): 51.7
Inside Diameter (IN): 7.087
Inside Diameter (MM): 180
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.51
Mounting Bolt Hole Circle Diameter (MM): 114.55
Mounting Bolt Hole Diameter (IN): 0.516
Mounting Bolt Hole Diameter (MM): 13.1
Nominal Thickness (IN): 1.1
Nominal Thickness (MM): 27.95
Outside Diameter (IN): 11.681
Outside Diameter (MM): 296.7
Overall Height (IN): 2.04
Overall Height (MM): 51.8
Pad Contact Surface Width (IN): 2.3
Pad Contact Surface Width (MM): 58.35
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

MAZDA (1)

OE号码

品牌	号码
OE	1932544*
