ASTRA
18A81010

第三方数据ASTRA : 18A81010

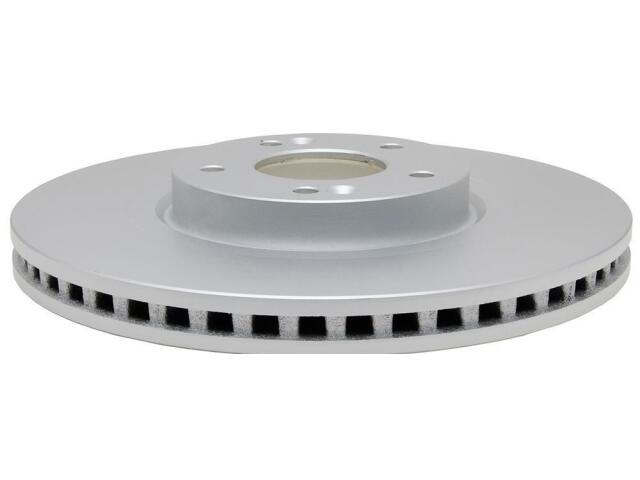

Rotor
ASTRA : 18A81010

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Center Bore Diameter (IN): 2.7in
Center Bore Diameter (MM): 69mm
Center Hole Diameter (IN): 2.72
Center Hole Diameter (MM): 69.1
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Coated
Discard Thickness (IN): 1.024
Discard Thickness (MM): 26
Hat Finish: Turned
Height (IN): 1.9
Height (MM): 49.3
Inside Diameter (IN): 8.067
Inside Diameter (MM): 204.9
Length (IN): 13
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.496
Mounting Bolt Hole Diameter (MM): 12.6
Nominal Thickness (IN): 1.106
Nominal Thickness (MM): 28.1
Outside Diameter (IN): 12.598
Outside Diameter (MM): 320
Overall Height (IN): 1.941
Overall Height (MM): 49.3
Pad Contact Surface Width (IN): 2.3
Pad Contact Surface Width (MM): 57.55
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 21.2
Width (IN): 13

适用车型

HYUNDAI (2)

SANTA FE (3)

SANTA FE XL (1)

KIA (1)

OE号码

品牌	号码
OE	1932544*
