第三方数据ASTRA : 18A80990SD

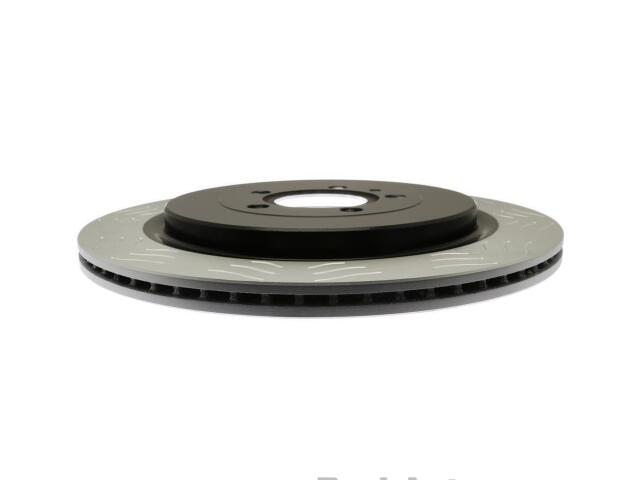

Rotor
ASTRA : 18A80990SD

Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Center Hole Diameter (IN): 2.785
Center Hole Diameter (MM): 70.75
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Bare
Discard Thickness (IN): 0.689
Discard Thickness (MM): 17.5
Height (IN): 1.366
Height (MM): 34.7
Inside Diameter (IN): 10.366
Inside Diameter (MM): 263.3
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.591
Mounting Bolt Hole Diameter (MM): 15
Nominal Thickness (IN): 0.748
Nominal Thickness (MM): 19
Outside Diameter (IN): 13.78
Outside Diameter (MM): 350
Overall Height (IN): 1.366
Overall Height (MM): 34.7
Solid Or Vented Type Rotor: Vented

适用车型

FORD (1)

OE号码

品牌	号码
OE	1938360*
