ASTRA
18A80724SD

第三方数据ASTRA : 18A80724SD

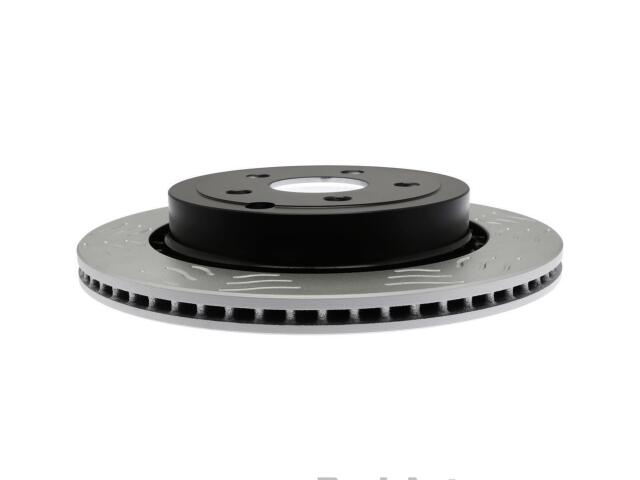

Rotor
ASTRA : 18A80724SD

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.72
Bolt Circle Diameter (MM): 120
Center Hole Diameter (IN): 2.654
Center Hole Diameter (MM): 67.4
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Turned
Discard Thickness (IN): 0.787
Discard Thickness (MM): 20
Hat Finish: Turned
Height (IN): 2.183070866
Height (MM): 55.45
Inside Diameter (IN): 9.134
Inside Diameter (MM): 232
Material: ES100E
Mounting Bolt Hole Circle Diameter (IN): 4.724
Mounting Bolt Hole Circle Diameter (MM): 120
Mounting Bolt Hole Diameter (IN): 0.636
Mounting Bolt Hole Diameter (MM): 16.15
Nominal Thickness (IN): 0.866
Nominal Thickness (MM): 22
Outside Diameter (IN): 12.756
Outside Diameter (MM): 324
Overall Height (IN): 2.183
Overall Height (MM): 55.45
Rust Resistant Coating: Yes
Slotted: Yes
Solid Or Vented Type Rotor: Vented
Surface Type: Slotted

适用车型

CHEVROLET (2)

PONTIAC (1)

OE号码

品牌	号码
OE	1936213*
