ASTRA
18A723

第三方数据ASTRA : 18A723

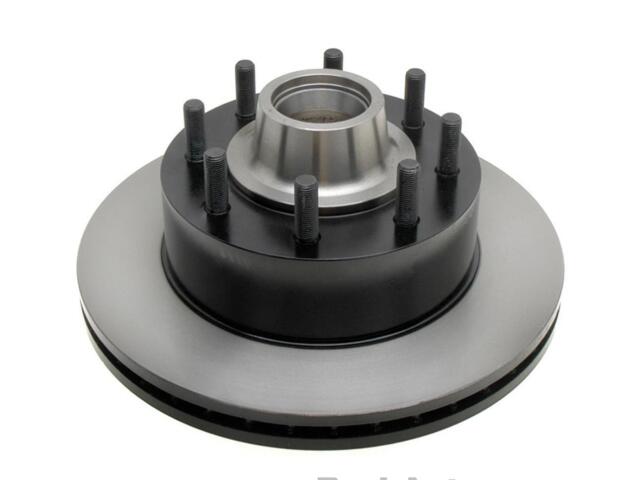

Rotor
ASTRA : 18A723

Abs Tone Ring Included: Yes
Bolt Circle Diameter (IN): 6.5
Bolt Circle Diameter (MM): 165.1
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.1
Discard Thickness (MM): 27.95
Height (IN): 7.25
Hub Attached: Yes
Length (IN): 13.38
Mounting Bolt Hole Circle Diameter (IN): 6.5
Mounting Bolt Hole Circle Diameter (MM): 165.1
Mounting Bolt Hole Diameter (IN): 0.6
Mounting Bolt Hole Diameter (MM): 15.25
Nominal Thickness (IN): 1.19
Nominal Thickness (MM): 30.25
Outside Diameter (IN): 13.03
Outside Diameter (MM): 330.9
Overall Height (IN): 5.65
Overall Height (MM): 143.5
Rotor Outside Diameter (IN): 13.03
Rotor Outside Diameter (MM): 330.9
Solid Or Vented Type Rotor: Vented
Weight (lb): 38.5
Width (IN): 13.38

适用车型

FORD (3)

E-150 (2)

E-250 (2)

E-350 (3)

OE号码

品牌	号码
OE	1917503*
