ASTRA
18A367

第三方数据ASTRA : 18A367

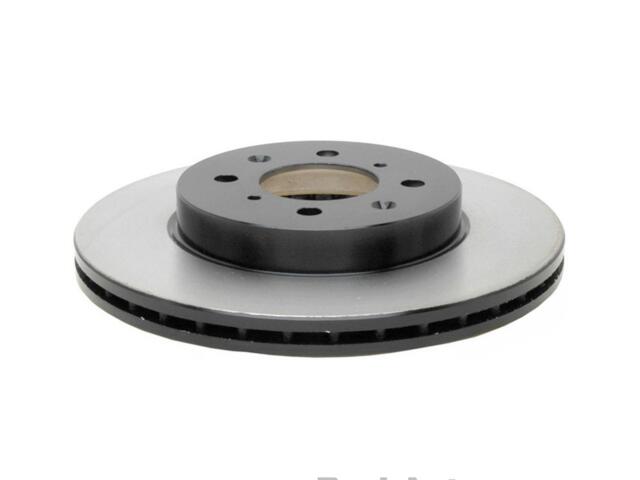

Rotor
ASTRA : 18A367

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 3.9
Bolt Circle Diameter (MM): 100
Center Bore Diameter (IN): 2.5in
Center Bore Diameter (MM): 64.2mm
Center Hole Diameter (IN): 2.53
Center Hole Diameter (MM): 64.25
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Ground
Discard Thickness (IN): 0.748
Discard Thickness (MM): 19
Hat Finish: Turned
Height (IN): 1.8
Height (MM): 44.9
Length (IN): 11.25
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.93
Mounting Bolt Hole Circle Diameter (MM): 99.8
Mounting Bolt Hole Diameter (IN): 0.5
Mounting Bolt Hole Diameter (MM): 12.7
Nominal Thickness (IN): 0.825
Nominal Thickness (MM): 20.95
Outside Diameter (IN): 10.315
Outside Diameter (MM): 262
Overall Height (IN): 1.765
Overall Height (MM): 44.85
Overall Rotor Diameter (mm): 261.87mm
Pad Contact Surface Width (IN): 2
Pad Contact Surface Width (MM): 51.25
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 12
Width (IN): 11.25

适用车型

HONDA (4)

CIVIC (3)

INSIGHT (1)

CITY (1)

FIT (1)

ACURA (1)

OE号码

品牌	号码
OE	1917494*
