ASTRA
18A2961

第三方数据ASTRA : 18A2961

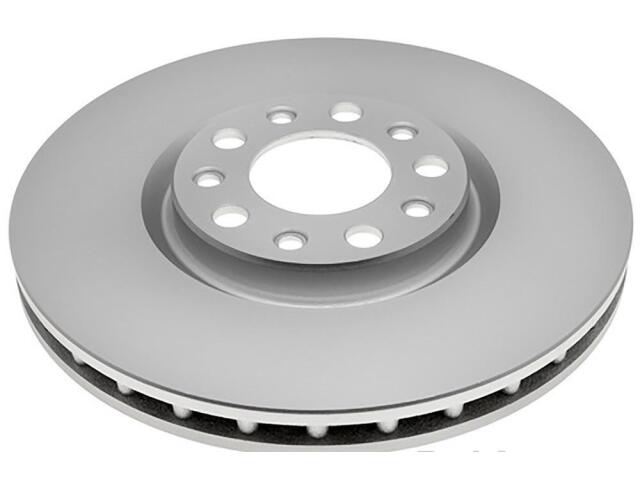

Rotor
ASTRA : 18A2961

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.76
Center Hole Diameter (MM): 70.1
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Coated
Discard Thickness (IN): 1.024
Discard Thickness (MM): 26
Height (IN): 12.3
Inside Diameter (IN): 7.028
Inside Diameter (MM): 178.5
Length (IN): 12.3
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.331
Mounting Bolt Hole Circle Diameter (MM): 110
Mounting Bolt Hole Diameter (IN): 0.65
Mounting Bolt Hole Diameter (MM): 16.5
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28
Outside Diameter (IN): 12.008
Outside Diameter (MM): 305
Overall Height (IN): 1.56
Overall Height (MM): 39.6
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 17.92
Width (IN): 2.5

适用车型

CHRYSLER (1)

DODGE (1)

OE号码

品牌	号码
OE	1933994*
