ASTRA
18A2956

第三方数据ASTRA : 18A2956

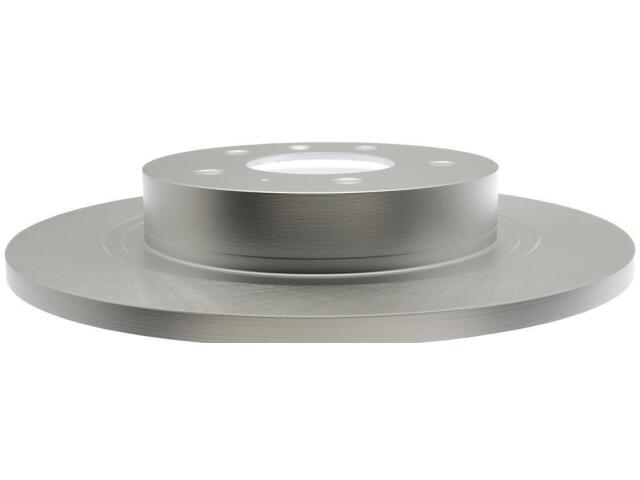

Rotor
ASTRA : 18A2956

Abs Tone Ring Included: No
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Coated
Discard Thickness (IN): 0.39
Discard Thickness (MM): 9.9
Height (IN): 2
Inside Diameter (IN): 7.48
Inside Diameter (MM): 190
Length (IN): 12
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.528
Mounting Bolt Hole Circle Diameter (MM): 115
Nominal Thickness (IN): 0.47
Nominal Thickness (MM): 11.95
Outside Diameter (IN): 11.496
Outside Diameter (MM): 292
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth
Weight (lb): 12.28
Width (IN): 12.9

适用车型

BUICK (1)

CADILLAC (1)

CHEVROLET (2)

OE号码

品牌	号码
OE	1934028*
