ASTRA
18A2941

第三方数据ASTRA : 18A2941

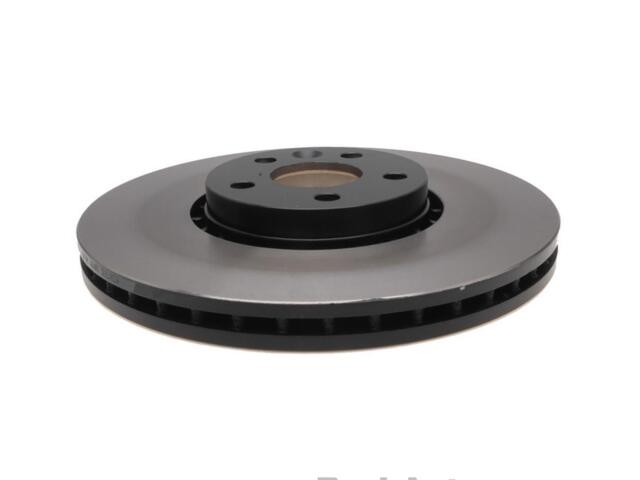

Rotor
ASTRA : 18A2941

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.3
Bolt Circle Diameter (MM): 108
Center Bore Diameter (IN): 2.5in
Center Bore Diameter (MM): 63.6mm
Center Hole Diameter (IN): 2.504
Center Hole Diameter (MM): 63.6
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Turned
Discard Thickness (IN): 1.102
Discard Thickness (MM): 28
Hat Finish: Turned
Height (IN): 2
Height (MM): 52
Inside Diameter (IN): 6.991
Inside Diameter (MM): 177.55
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.252
Mounting Bolt Hole Circle Diameter (MM): 108
Mounting Bolt Hole Diameter (IN): 0.618
Mounting Bolt Hole Diameter (MM): 15.7
Nominal Thickness (IN): 1.182
Nominal Thickness (MM): 30
Outside Diameter (IN): 12.91
Outside Diameter (MM): 327.9
Overall Height (IN): 2.049
Overall Height (MM): 52.05
Overall Rotor Diameter (mm): 327.91mm
Pad Contact Surface Width (IN): 3
Pad Contact Surface Width (MM): 75
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

VOLVO (1)

XC60 (4)

2.0L L4 Turbocharged (5)

2.5L L5 Turbocharged (1)

3.0L L6 Turbocharged (6)

3.2L L6 (6)

OE号码

品牌	号码
OE	1930702*
