ASTRA
18A2938

第三方数据ASTRA : 18A2938

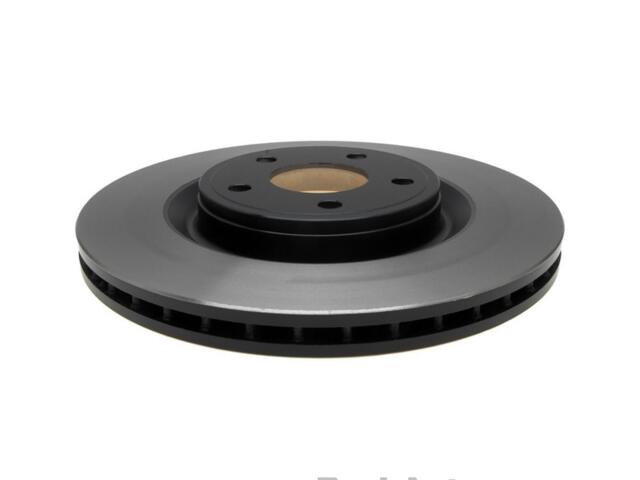

Rotor
ASTRA : 18A2938

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.3
Bolt Circle Diameter (MM): 110
Center Bore Diameter (IN): 2.6in
Center Bore Diameter (MM): 65.5mm
Center Hole Diameter (IN): 2.58
Center Hole Diameter (MM): 65.55
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Turned
Discard Thickness (IN): 0.945
Discard Thickness (MM): 24
Hat Finish: Turned
Height (IN): 1.7
Height (MM): 43
Inside Diameter (IN): 8.085
Inside Diameter (MM): 205.35
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.331
Mounting Bolt Hole Circle Diameter (MM): 110
Mounting Bolt Hole Diameter (IN): 0.56
Mounting Bolt Hole Diameter (MM): 14.2
Nominal Thickness (IN): 1.022
Nominal Thickness (MM): 25.95
Outside Diameter (IN): 12.416
Outside Diameter (MM): 315.35
Overall Height (IN): 1.692
Overall Height (MM): 43
Overall Rotor Diameter (mm): 315.47mm
Pad Contact Surface Width (IN): 2.2
Pad Contact Surface Width (MM): 55
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

CHEVROLET (2)

OE号码

品牌	号码
OE	1930702*
