ASTRA
18A2936SD

第三方数据ASTRA : 18A2936SD

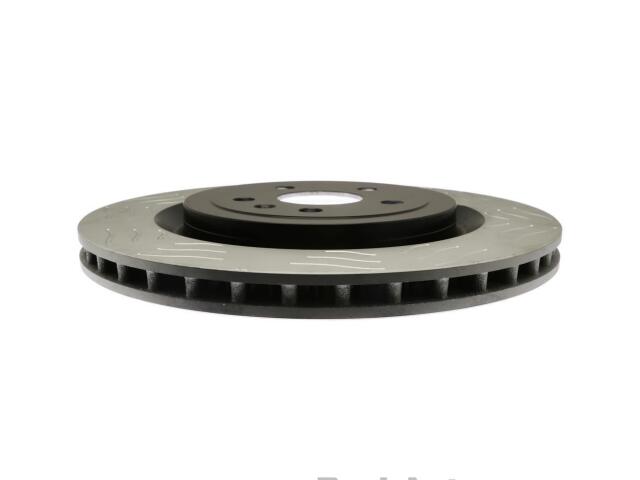

Rotor
ASTRA : 18A2936SD

Bolt Circle Diameter (IN): 4.724
Bolt Circle Diameter (MM): 120
Center Hole Diameter (IN): 2.654
Center Hole Diameter (MM): 67.4
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Bare
Discard Thickness (IN): 1.024
Discard Thickness (MM): 26
Height (IN): 1.87
Height (MM): 47.5
Inside Diameter (IN): 8.386
Inside Diameter (MM): 213
Mounting Bolt Hole Circle Diameter (IN): 4.724
Mounting Bolt Hole Circle Diameter (MM): 120
Mounting Bolt Hole Diameter (IN): 0.646
Mounting Bolt Hole Diameter (MM): 16.4
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28
Outside Diameter (IN): 14.37
Outside Diameter (MM): 365
Overall Height (IN): 1.87
Overall Height (MM): 47.5
Solid Or Vented Type Rotor: Vented

适用车型

CADILLAC (1)

CHEVROLET (1)

CAMARO (4)

2.0L L4 Turbocharged (2)

3.6L V6 (2)

6.2L V8 (10)

6.2L V8 Supercharged (8)

OE号码

品牌	号码
OE	1938360*
