ASTRA
18A2919

第三方数据ASTRA : 18A2919

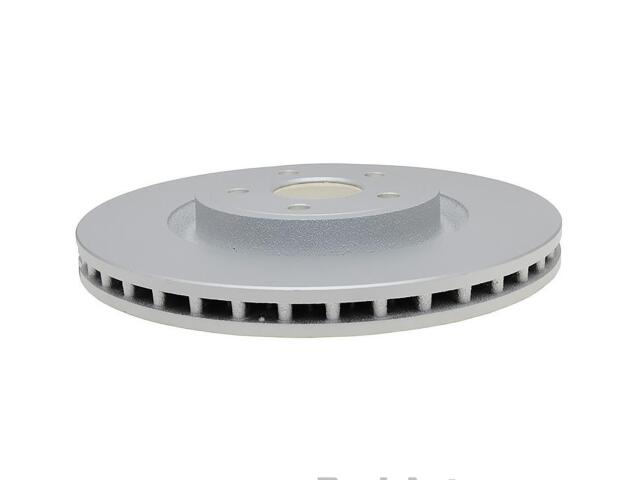

Rotor
ASTRA : 18A2919

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 5
Bolt Circle Diameter (MM): 127
Center Bore Diameter (IN): 2.8in
Center Bore Diameter (MM): 72mm
Center Hole Diameter (IN): 2.835
Center Hole Diameter (MM): 72
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Coated
Discard Thickness (IN): 1.26
Discard Thickness (MM): 32
Hat Finish: Turned
Height (IN): 2.1
Height (MM): 54.6
Inside Diameter (IN): 9.535
Inside Diameter (MM): 242.2
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5
Mounting Bolt Hole Circle Diameter (MM): 127
Mounting Bolt Hole Diameter (IN): 5
Mounting Bolt Hole Diameter (MM): 127
Nominal Thickness (IN): 1.339
Nominal Thickness (MM): 34
Outside Diameter (IN): 14.961
Outside Diameter (MM): 380
Overall Height (IN): 2.15
Overall Height (MM): 54.6
Overall Rotor Diameter (mm): 379.98mm
Pad Contact Surface Width (IN): 2.7
Pad Contact Surface Width (MM): 68.9
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

JEEP (1)

DODGE (1)

OE号码

品牌	号码
OE	1930676*
