ASTRA
18A2892

第三方数据ASTRA : 18A2892

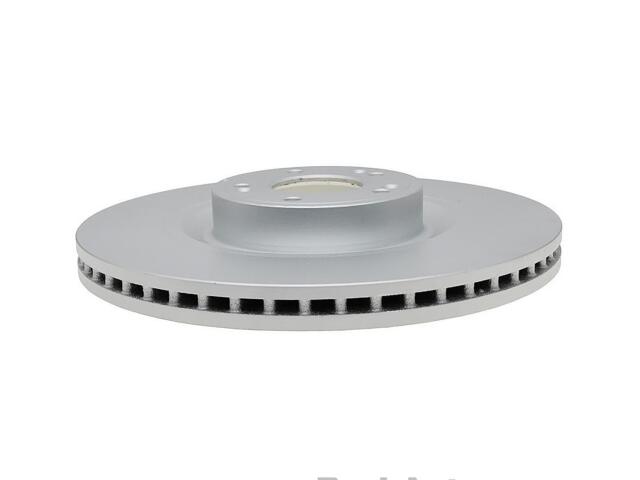

Rotor
ASTRA : 18A2892

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Center Bore Diameter (IN): 2.7in
Center Bore Diameter (MM): 69mm
Center Hole Diameter (IN): 2.717
Center Hole Diameter (MM): 69
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Turned
Discard Thickness (IN): 1.118
Discard Thickness (MM): 28.4
Hat Finish: Turned
Height (IN): 2.2
Height (MM): 56.7
Inside Diameter (IN): 9.217
Inside Diameter (MM): 234.1
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 2.717
Mounting Bolt Hole Diameter (MM): 69
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30
Outside Diameter (IN): 14.173
Outside Diameter (MM): 360
Overall Height (IN): 2.232
Overall Height (MM): 56.7
Pad Contact Surface Width (IN): 2.5
Pad Contact Surface Width (MM): 62.95
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

HYUNDAI (2)

KIA (1)

GENESIS (1)

OE号码

品牌	号码
OE	1929859*
