ASTRA
18A2891

第三方数据ASTRA : 18A2891

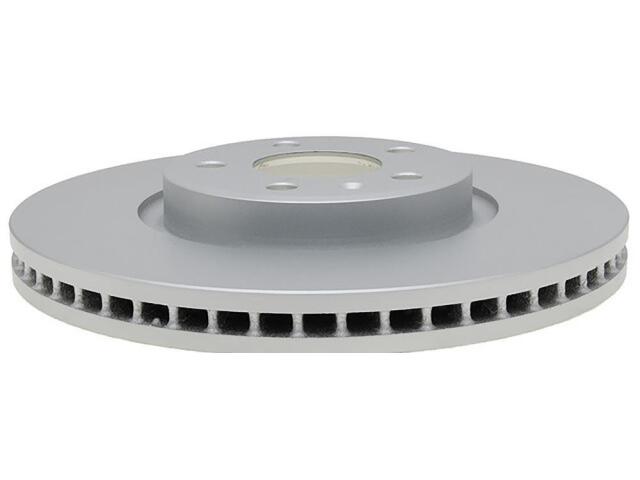

Rotor
ASTRA : 18A2891

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.4
Bolt Circle Diameter (MM): 112
Center Bore Diameter (IN): 2.7in
Center Bore Diameter (MM): 68mm
Center Hole Diameter (IN): 2.677
Center Hole Diameter (MM): 68
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Turned
Discard Thickness (IN): 1.102
Discard Thickness (MM): 28
Hat Finish: Turned
Height (IN): 2.1
Height (MM): 52.2
Inside Diameter (IN): 7.441
Inside Diameter (MM): 189
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.409
Mounting Bolt Hole Circle Diameter (MM): 112
Mounting Bolt Hole Diameter (IN): 0.595
Mounting Bolt Hole Diameter (MM): 15.1
Nominal Thickness (IN): 1.177
Nominal Thickness (MM): 29.9
Outside Diameter (IN): 12.594
Outside Diameter (MM): 319.9
Overall Height (IN): 2.055
Overall Height (MM): 52.2
Pad Contact Surface Width (IN): 2.6
Pad Contact Surface Width (MM): 65.45
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

AUDI (6)

A4 (4)

A5 (3)

A6 (4)

ALLROAD (1)

Q5 (3)

A7 (1)

OE号码

品牌	号码
OE	1929859*
