ASTRA
18A2842

第三方数据ASTRA : 18A2842

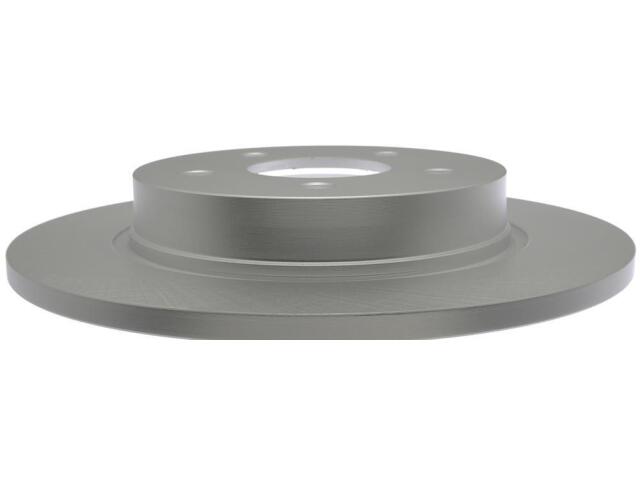

Rotor
ASTRA : 18A2842

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.5
Center Hole Diameter (MM): 63.5
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Coated
Discard Thickness (IN): 0.354
Discard Thickness (MM): 9
Height (IN): 2
Inside Diameter (IN): 7.205
Inside Diameter (MM): 183
Length (IN): 11.3
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.252
Mounting Bolt Hole Circle Diameter (MM): 108
Mounting Bolt Hole Diameter (IN): 0.54
Mounting Bolt Hole Diameter (MM): 13.7
Nominal Thickness (IN): 0.429
Nominal Thickness (MM): 10.9
Outside Diameter (IN): 10.665
Outside Diameter (MM): 270.9
Overall Height (IN): 1.6
Overall Height (MM): 40.65
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth
Weight (lb): 9.7
Width (IN): 12.3

适用车型

FORD (1)

FOCUS (4)

2.0L L4 (7)

2.0L L4 Turbocharged (6)

999cc L3 Turbocharged (4)

ELECTRIC (6)

OE号码

品牌	号码
OE	1936011*
