ASTRA
18A2835

第三方数据ASTRA : 18A2835

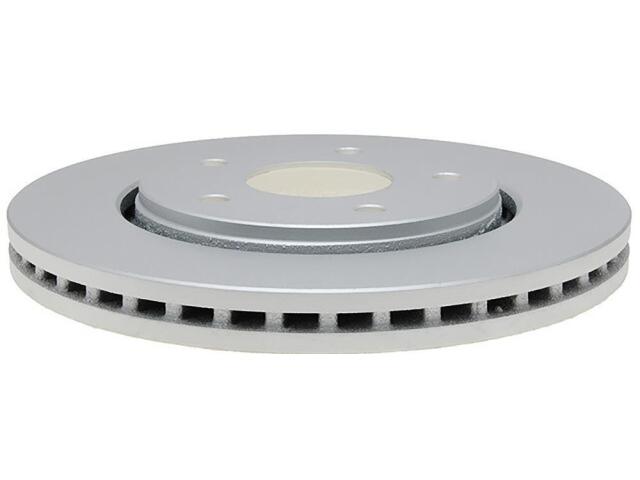

Rotor
ASTRA : 18A2835

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 5
Bolt Circle Diameter (MM): 127
Center Bore Diameter (IN): 2.9in
Center Bore Diameter (MM): 72.4mm
Center Hole Diameter (IN): 2.85
Center Hole Diameter (MM): 72.4
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Ground
Discard Thickness (IN): 1.039
Discard Thickness (MM): 26.4
Hat Finish: Turned
Height (IN): 1.5
Height (MM): 38
Inside Diameter (IN): 7.701
Inside Diameter (MM): 195.6
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5
Mounting Bolt Hole Circle Diameter (MM): 127
Mounting Bolt Hole Diameter (IN): 0.546
Mounting Bolt Hole Diameter (MM): 13.85
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28
Outside Diameter (IN): 11.89
Outside Diameter (MM): 302
Overall Height (IN): 1.5
Overall Height (MM): 38.1
Overall Rotor Diameter (mm): 302.01mm
Pad Contact Surface Width (IN): 2.1
Pad Contact Surface Width (MM): 53.2
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

CHRYSLER (1)

VOLKSWAGEN (1)

DODGE (1)

OE号码

品牌	号码
OE	8887948*
