ASTRA
18A2826

第三方数据ASTRA : 18A2826

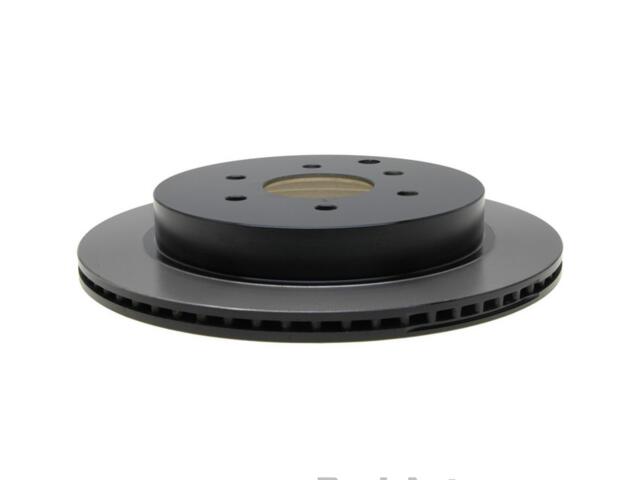

Rotor
ASTRA : 18A2826

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 5.5
Bolt Circle Diameter (MM): 139.7
Center Bore Diameter (IN): 3.2in
Center Bore Diameter (MM): 82mm
Center Hole Diameter (IN): 3.228
Center Hole Diameter (MM): 82
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Disc Finish: Turned
Discard Thickness (IN): 0.709
Discard Thickness (MM): 18
Hat Finish: Turned
Height (IN): 2.5
Height (MM): 64.3
Inside Diameter (IN): 10.193
Inside Diameter (MM): 258.9
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.5
Mounting Bolt Hole Circle Diameter (MM): 139.7
Mounting Bolt Hole Diameter (IN): 0.573
Mounting Bolt Hole Diameter (MM): 14.55
Nominal Thickness (IN): 0.787
Nominal Thickness (MM): 20
Outside Diameter (IN): 13.772
Outside Diameter (MM): 349.8
Overall Height (IN): 2.533
Overall Height (MM): 64.35
Overall Rotor Diameter (mm): 349.76mm
Pad Contact Surface Width (IN): 1.8
Pad Contact Surface Width (MM): 45.45
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.573
Stud/Lug Hole Diameter (MM): 14.55
Surface Type: Smooth

适用车型

NISSAN (1)

INFINITI (2)

OE号码

品牌	号码
OE	8887848*
