第三方数据ASTRA : 18A2817

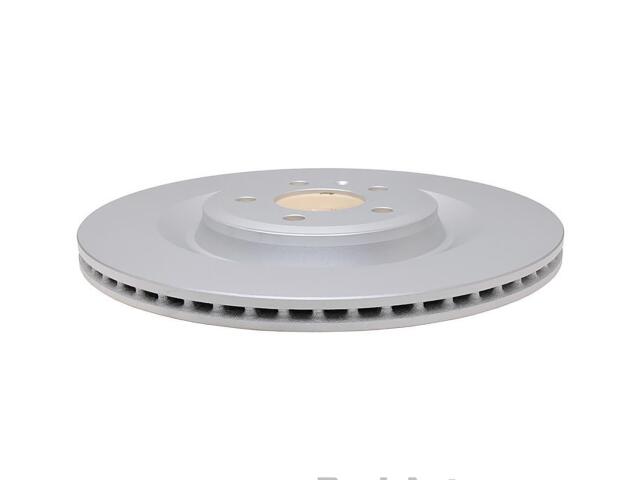

Rotor
ASTRA : 18A2817

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.4
Bolt Circle Diameter (MM): 112
Center Bore Diameter (IN): 2.7in
Center Bore Diameter (MM): 68mm
Center Hole Diameter (IN): 2.677
Center Hole Diameter (MM): 68
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Turned
Discard Thickness (IN): 0.787
Discard Thickness (MM): 20
Hat Finish: Turned
Height (IN): 1.4
Height (MM): 36.1
Inside Diameter (IN): 9.591
Inside Diameter (MM): 243.6
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.409
Mounting Bolt Hole Circle Diameter (MM): 112
Mounting Bolt Hole Diameter (IN): 0.595
Mounting Bolt Hole Diameter (MM): 15.1
Nominal Thickness (IN): 0.862
Nominal Thickness (MM): 21.9
Outside Diameter (IN): 14.004
Outside Diameter (MM): 355.7
Overall Height (IN): 1.421
Overall Height (MM): 36.1
Overall Rotor Diameter (mm): 355.6mm
Pad Contact Surface Width (IN): 2.2
Pad Contact Surface Width (MM): 56.05
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

AUDI (4)

A8 (4)

3.0L V6 Supercharged (1)

4.0L V8 Turbocharged (6)

4.2L V8 (2)

6.3L W12 (7)

S6 (1)

S7 (1)

S8 (1)

OE号码

品牌	号码
OE	8887810*
