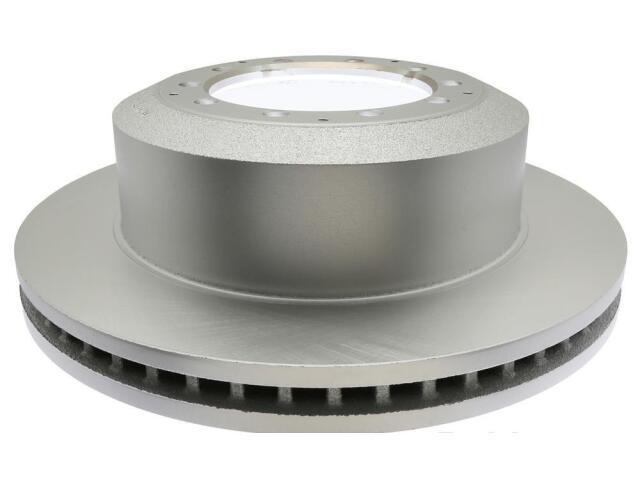

Rotor
ASTRA : 18A2812

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 6.4
Bolt Circle Diameter (MM): 163
Center Bore Diameter (IN): 5.5in
Center Bore Diameter (MM): 139.4mm
Center Hole Diameter (IN): 5.488
Center Hole Diameter (MM): 139.4
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Disc Finish: Turned
Discard Thickness (IN): 1.472
Discard Thickness (MM): 37.4
Hat Finish: Turned
Height (IN): 4.9
Height (MM): 124.2
Inside Diameter (IN): 10.622
Inside Diameter (MM): 269.8
Length (IN): 16.1
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 6.417
Mounting Bolt Hole Circle Diameter (MM): 163
Mounting Bolt Hole Diameter (IN): 0.507
Mounting Bolt Hole Diameter (MM): 12.9
Nominal Thickness (IN): 1.535
Nominal Thickness (MM): 39
Outside Diameter (IN): 15.354
Outside Diameter (MM): 390
Overall Height (IN): 4.89
Overall Height (MM): 124.2
Overall Rotor Diameter (mm): 390.14mm
Pad Contact Surface Width (IN): 2.4
Pad Contact Surface Width (MM): 60.1
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 44.6
Width (IN): 16.1

适用车型

DODGE (2)

RAM (2)

OE号码

品牌	号码
OE	8887810*
