ASTRA
18A2811

第三方数据ASTRA : 18A2811

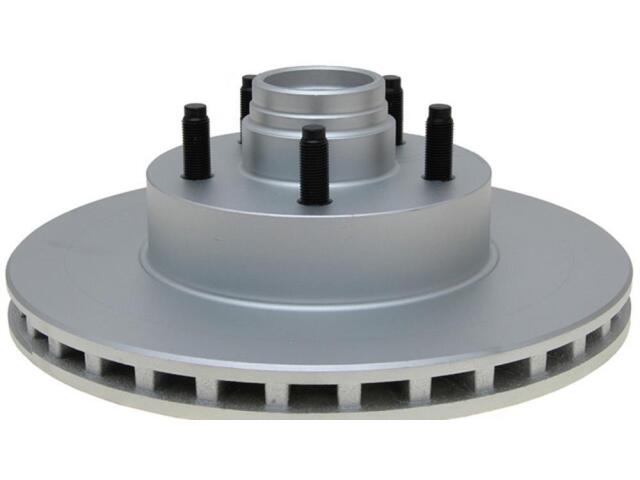

Rotor
ASTRA : 18A2811

Abs Tone Ring Included: Yes
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Discard Thickness (IN): 0.965
Discard Thickness (MM): 24.5
Height (IN): 4
Hub Attached: Yes
Inside Diameter (IN): 7
Inside Diameter (MM): 177.8
Length (IN): 13.1
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.54
Mounting Bolt Hole Diameter (MM): 13.7
Nominal Thickness (IN): 1.024
Nominal Thickness (MM): 26
Outside Diameter (IN): 11.28
Outside Diameter (MM): 286.5
Rotor Outside Diameter (IN): 11.28
Rotor Outside Diameter (MM): 286.5
Solid Or Vented Type Rotor: Vented
Weight (lb): 22.9
Width (IN): 13.1

适用车型

FORD (1)

OE号码

品牌	号码
OE	8887809*
