第三方数据ASTRA : 18A2806

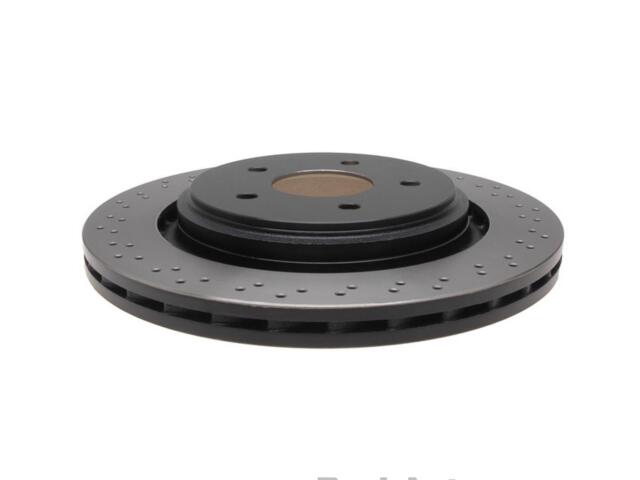

Rotor
ASTRA : 18A2806

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.8
Bolt Circle Diameter (MM): 120.7
Center Bore Diameter (IN): 2.8in
Center Bore Diameter (MM): 70.7mm
Center Hole Diameter (IN): 2.783
Center Hole Diameter (MM): 70.7
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Disc Finish: Turned
Discard Thickness (IN): 0.945
Discard Thickness (MM): 24
Hat Finish: Turned
Height (IN): 1.9
Height (MM): 49
Inside Diameter (IN): 9.272
Inside Diameter (MM): 235.5
Length (IN): 13.2
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.75
Mounting Bolt Hole Circle Diameter (MM): 120.65
Mounting Bolt Hole Diameter (IN): 0.526
Mounting Bolt Hole Diameter (MM): 13.35
Nominal Thickness (IN): 1.024
Nominal Thickness (MM): 26
Outside Diameter (IN): 12.992
Outside Diameter (MM): 330
Overall Height (IN): 1.929
Overall Height (MM): 49
Overall Rotor Diameter (mm): 329.95mm
Pad Contact Surface Width (IN): 1.9
Pad Contact Surface Width (MM): 47.25
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 21.1
Width (IN): 13.2

适用车型

CADILLAC (1)

CHEVROLET (1)

CORVETTE (4)

6.0L V8 (3)

6.2L V8 (6)

6.2L V8 Supercharged (3)

7.0L V8 (6)

OE号码

品牌	号码
OE	8887768*
