ASTRA
18A2801

第三方数据ASTRA : 18A2801

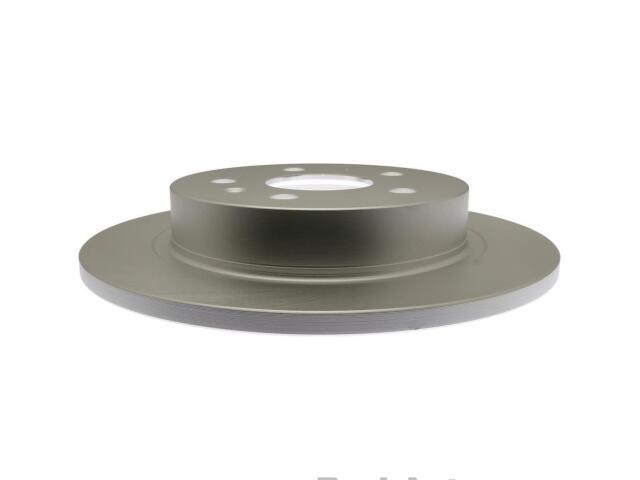

Rotor
ASTRA : 18A2801

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.724
Bolt Circle Diameter (MM): 120
Bolt Hole Diameter (IN): 0.66
Bolt Hole Diameter (MM): 16.66
Center Hole Diameter (IN): 2.65
Center Hole Diameter (MM): 67.3
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Directional or Non-Directional Brake Surface: No
Disc Finish: Coated
Discard Thickness (IN): 0.413
Discard Thickness (MM): 10.5
Hat Finish: Coated
Height (IN): 1.89
Height (MM): 48
Inside Diameter (IN): 8.201
Inside Diameter (MM): 208.3
Length (IN): 12.99
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.72
Mounting Bolt Hole Circle Diameter (MM): 119.9
Mounting Bolt Hole Diameter (IN): 0.636
Mounting Bolt Hole Diameter (MM): 16.15
Nominal Thickness (IN): 0.472
Nominal Thickness (MM): 12
Original Equipment Replacement: Yes
Outside Diameter (IN): 11.5
Outside Diameter (MM): 292.1
Overall Height (IN): 1.89
Overall Height (MM): 48
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth
Weight (lb): 14.6
Width (IN): 12.2

适用车型

BUICK (2)

REGAL (2)

LACROSSE (2)

CHEVROLET (2)

OE号码

品牌	号码
OE	1938825*
