ASTRA
18A2799

第三方数据ASTRA : 18A2799

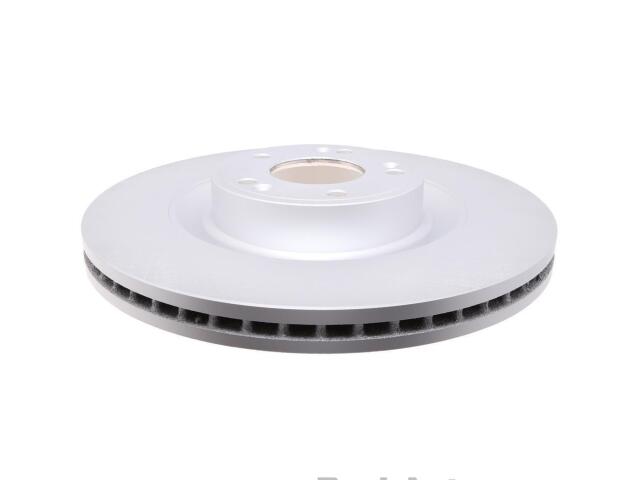

Rotor
ASTRA : 18A2799

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Center Bore Diameter (IN): 2.7in
Center Bore Diameter (MM): 69mm
Center Hole Diameter (IN): 2.717
Center Hole Diameter (MM): 69
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Turned
Discard Thickness (IN): 1.118
Discard Thickness (MM): 28.4
Hat Finish: Turned
Height (IN): 2.2
Height (MM): 56.6
Inside Diameter (IN): 8.728
Inside Diameter (MM): 221.7
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.495
Mounting Bolt Hole Diameter (MM): 12.55
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30
Outside Diameter (IN): 13.583
Outside Diameter (MM): 345
Overall Height (IN): 2.228
Overall Height (MM): 56.6
Overall Rotor Diameter (mm): 344.93mm
Pad Contact Surface Width (IN): 2.4
Pad Contact Surface Width (MM): 61.65
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

HYUNDAI (2)

KIA (1)

GENESIS (1)

OE号码

品牌	号码
OE	8887571*
