ASTRA
18A2786

第三方数据ASTRA : 18A2786

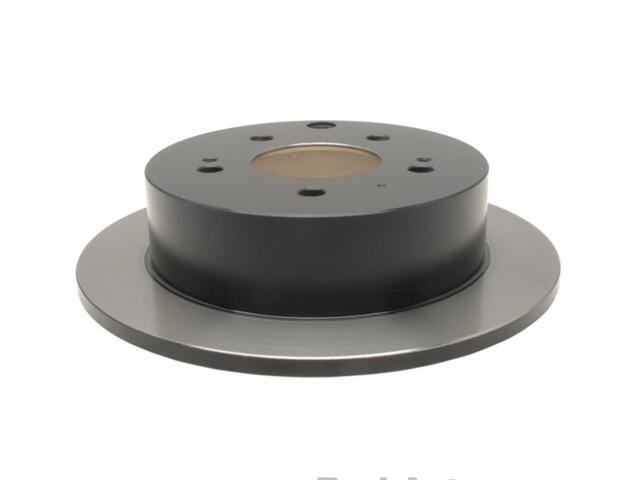

Rotor
ASTRA : 18A2786

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Center Bore Diameter (IN): 2.7in
Center Bore Diameter (MM): 69mm
Center Hole Diameter (IN): 2.717
Center Hole Diameter (MM): 69
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Disc Finish: Ground
Discard Thickness (IN): 0.331
Discard Thickness (MM): 8.4
Hat Finish: Turned
Height (IN): 2.4
Height (MM): 60.3
Inside Diameter (IN): 7.441
Inside Diameter (MM): 189
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.495
Mounting Bolt Hole Diameter (MM): 12.55
Nominal Thickness (IN): 0.393
Nominal Thickness (MM): 10
Outside Diameter (IN): 10.315
Outside Diameter (MM): 262
Overall Height (IN): 2.374
Overall Height (MM): 60.3
Overall Rotor Diameter (mm): 262.13mm
Pad Contact Surface Width (IN): 1.4
Pad Contact Surface Width (MM): 36.5
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth

适用车型

MITSUBISHI (2)

OE号码

品牌	号码
OE	1928854*
