ASTRA
18A2775

第三方数据ASTRA : 18A2775

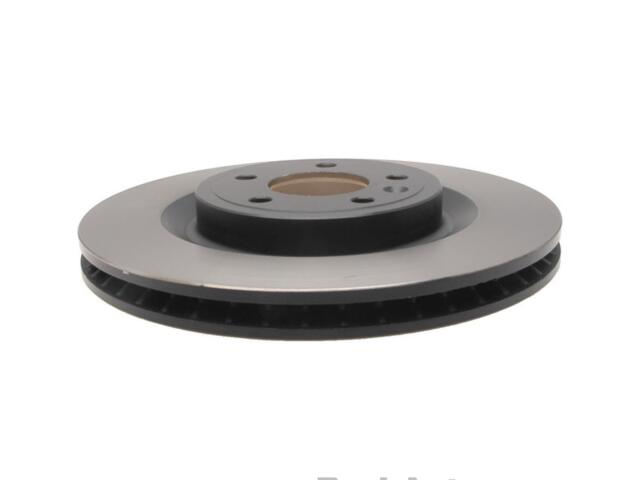

Rotor
ASTRA : 18A2775

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Center Bore Diameter (IN): 2.8in
Center Bore Diameter (MM): 71mm
Center Hole Diameter (IN): 2.795
Center Hole Diameter (MM): 71
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Turned
Discard Thickness (IN): 1.118
Discard Thickness (MM): 28.4
Hat Finish: Turned
Height (IN): 1.9
Height (MM): 48
Inside Diameter (IN): 8.756
Inside Diameter (MM): 222.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.585
Mounting Bolt Hole Diameter (MM): 14.85
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30
Outside Diameter (IN): 13.228
Outside Diameter (MM): 336
Overall Height (IN): 1.89
Overall Height (MM): 48
Overall Rotor Diameter (mm): 335.79mm
Pad Contact Surface Width (IN): 2.2
Pad Contact Surface Width (MM): 56.8
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

FORD (1)

OE号码

品牌	号码
OE	1928852*
