ASTRA
18A2760

第三方数据ASTRA : 18A2760

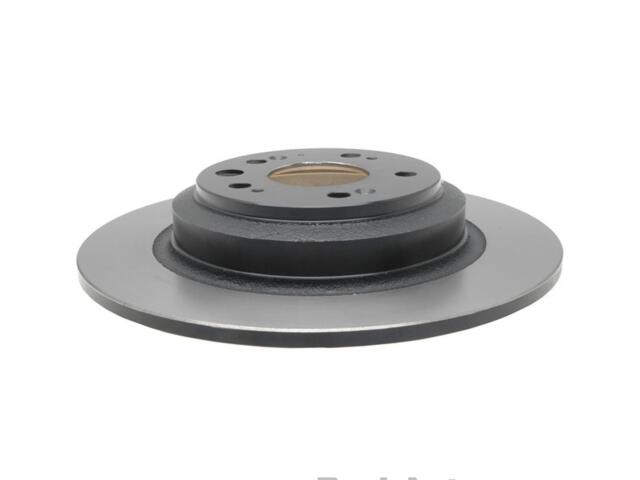

Rotor
ASTRA : 18A2760

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.7
Bolt Circle Diameter (MM): 120
Center Bore Diameter (IN): 2.8in
Center Bore Diameter (MM): 70mm
Center Hole Diameter (IN): 2.756
Center Hole Diameter (MM): 70
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Disc Finish: Turned
Discard Thickness (IN): 0.354
Discard Thickness (MM): 9
Hat Finish: Turned
Height (IN): 2.4
Height (MM): 60.6
Inside Diameter (IN): 9.118
Inside Diameter (MM): 231.6
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.724
Mounting Bolt Hole Circle Diameter (MM): 120
Mounting Bolt Hole Diameter (IN): 0.573
Mounting Bolt Hole Diameter (MM): 14.55
Nominal Thickness (IN): 0.432
Nominal Thickness (MM): 10.95
Outside Diameter (IN): 13.126
Outside Diameter (MM): 333.4
Overall Height (IN): 2.384
Overall Height (MM): 60.55
Overall Rotor Diameter (mm): 333.5mm
Pad Contact Surface Width (IN): 2
Pad Contact Surface Width (MM): 50.9
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth

适用车型

ACURA (1)

OE号码

品牌	号码
OE	1928851*
