ASTRA
18A2757

第三方数据ASTRA : 18A2757

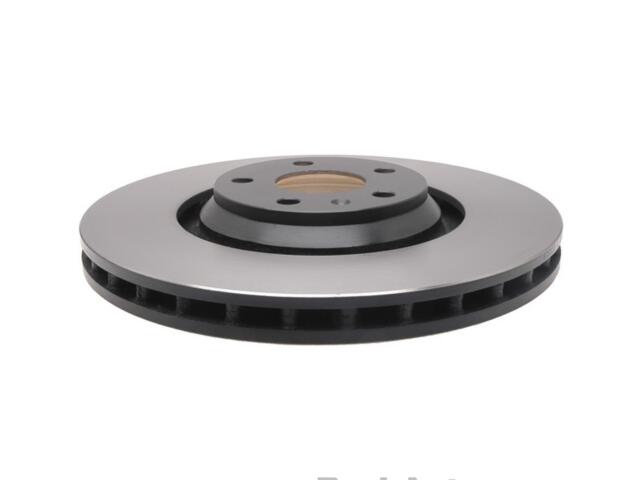

Rotor
ASTRA : 18A2757

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.4
Bolt Circle Diameter (MM): 112
Center Bore Diameter (IN): 2.5in
Center Bore Diameter (MM): 63.2mm
Center Hole Diameter (IN): 2.56
Center Hole Diameter (MM): 65
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Turned
Discard Thickness (IN): 1.102
Discard Thickness (MM): 28
Hat Finish: Turned
Height (IN): 2
Height (MM): 49.6
Inside Diameter (IN): 8.193
Inside Diameter (MM): 208.1
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.409
Mounting Bolt Hole Circle Diameter (MM): 112
Mounting Bolt Hole Diameter (IN): 0.595
Mounting Bolt Hole Diameter (MM): 15.1
Nominal Thickness (IN): 1.178
Nominal Thickness (MM): 29.9
Outside Diameter (IN): 13.378
Outside Diameter (MM): 339.8
Overall Height (IN): 1.951
Overall Height (MM): 49.55
Overall Rotor Diameter (mm): 339.85mm
Pad Contact Surface Width (IN): 2.6
Pad Contact Surface Width (MM): 65.85
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

AUDI (1)

OE号码

品牌	号码
OE	1928850*
