ASTRA
18A2756

第三方数据ASTRA : 18A2756

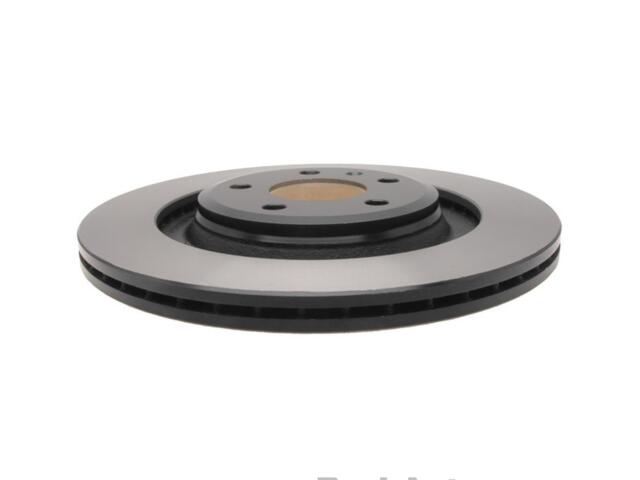

Rotor
ASTRA : 18A2756

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.4
Bolt Circle Diameter (MM): 112
Center Bore Diameter (IN): 2.7in
Center Bore Diameter (MM): 68mm
Center Hole Diameter (IN): 2.677
Center Hole Diameter (MM): 68
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Turned
Discard Thickness (IN): 0.787
Discard Thickness (MM): 20
Hat Finish: Turned
Height (IN): 1.4
Height (MM): 36.2
Inside Diameter (IN): 8.81
Inside Diameter (MM): 223.75
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.409
Mounting Bolt Hole Circle Diameter (MM): 112
Mounting Bolt Hole Diameter (IN): 0.595
Mounting Bolt Hole Diameter (MM): 15.1
Nominal Thickness (IN): 0.863
Nominal Thickness (MM): 21.9
Outside Diameter (IN): 12.98
Outside Diameter (MM): 329.7
Overall Height (IN): 1.427
Overall Height (MM): 36.25
Overall Rotor Diameter (mm): 329.69mm
Pad Contact Surface Width (IN): 2.1
Pad Contact Surface Width (MM): 52.95
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

AUDI (2)

OE号码

品牌	号码
OE	1928850*
