ASTRA
18A2750

第三方数据ASTRA : 18A2750

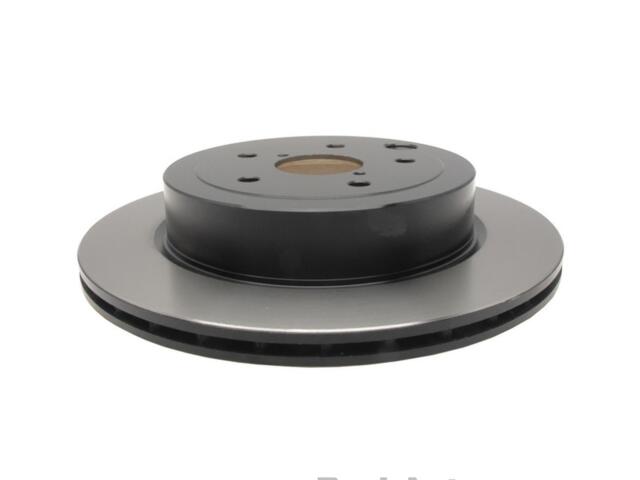

Rotor
ASTRA : 18A2750

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Center Bore Diameter (IN): 2.3in
Center Bore Diameter (MM): 58mm
Center Hole Diameter (IN): 2.283
Center Hole Diameter (MM): 58
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Disc Finish: Turned
Discard Thickness (IN): 0.748
Discard Thickness (MM): 19
Hat Finish: Turned
Height (IN): 2.4
Height (MM): 61.7
Inside Diameter (IN): 8.583
Inside Diameter (MM): 218
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.495
Mounting Bolt Hole Diameter (MM): 12.55
Nominal Thickness (IN): 0.787
Nominal Thickness (MM): 20
Outside Diameter (IN): 12.441
Outside Diameter (MM): 316
Overall Height (IN): 2.429
Overall Height (MM): 61.7
Overall Rotor Diameter (mm): 315.98mm
Pad Contact Surface Width (IN): 1.9
Pad Contact Surface Width (MM): 49
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

SUBARU (3)

OE号码

品牌	号码
OE	1928850*
