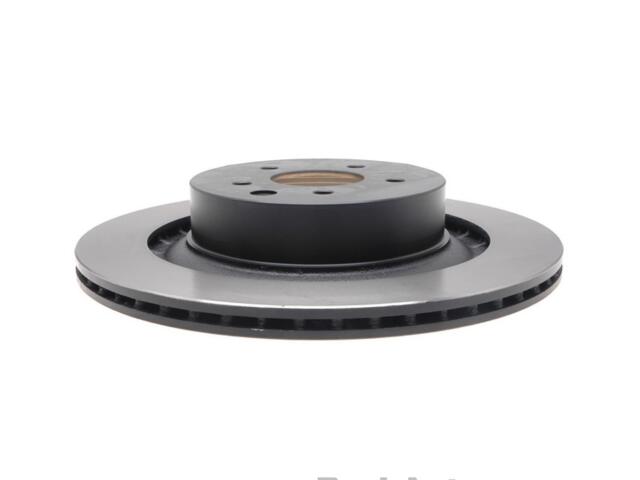

Rotor
ASTRA : 18A2748

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Center Bore Diameter (IN): 2.7in
Center Bore Diameter (MM): 68mm
Center Hole Diameter (IN): 2.677
Center Hole Diameter (MM): 68
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Disc Finish: Turned
Discard Thickness (IN): 0.709
Discard Thickness (MM): 18
Hat Finish: Turned
Height (IN): 2.4
Height (MM): 62
Inside Diameter (IN): 9.803
Inside Diameter (MM): 249
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 4.5
Mounting Bolt Hole Diameter (MM): 114.3
Nominal Thickness (IN): 0.787
Nominal Thickness (MM): 20
Outside Diameter (IN): 13.772
Outside Diameter (MM): 349.8
Overall Height (IN): 2.441
Overall Height (MM): 62
Overall Rotor Diameter (mm): 349.76mm
Pad Contact Surface Width (IN): 2
Pad Contact Surface Width (MM): 50.4
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

NISSAN (2)

INFINITI (2)

OE号码

品牌	号码
OE	1928849*
