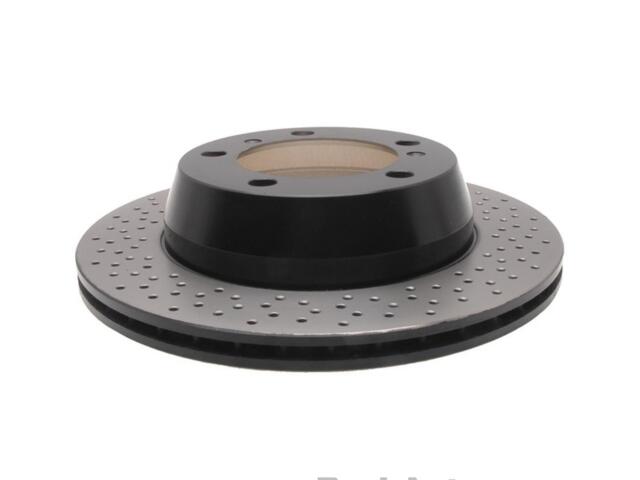

Rotor
ASTRA : 18A2745

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 5
Bolt Circle Diameter (MM): 130
Center Bore Diameter (IN): 3.9in
Center Bore Diameter (MM): 98mm
Center Hole Diameter (IN): 3.858
Center Hole Diameter (MM): 98
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Turned
Discard Thickness (IN): 0.709
Discard Thickness (MM): 18
Hat Finish: Turned
Height (IN): 2.6
Height (MM): 67
Inside Diameter (IN): 7.756
Inside Diameter (MM): 197
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.118
Mounting Bolt Hole Circle Diameter (MM): 130
Mounting Bolt Hole Diameter (IN): 0.605
Mounting Bolt Hole Diameter (MM): 15.35
Nominal Thickness (IN): 0.787
Nominal Thickness (MM): 20
Outside Diameter (IN): 11.764
Outside Diameter (MM): 298.8
Overall Height (IN): 2.638
Overall Height (MM): 67
Overall Rotor Diameter (mm): 298.7mm
Pad Contact Surface Width (IN): 2
Pad Contact Surface Width (MM): 50.9
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

PORSCHE (3)

718 (2)

BOXSTER (4)

2.7L H6 (8)

2.9L H6 (4)

3.4L H6 (4)

3.8L H6 (1)

CAYMAN (4)

OE号码

品牌	号码
OE	1928849*
