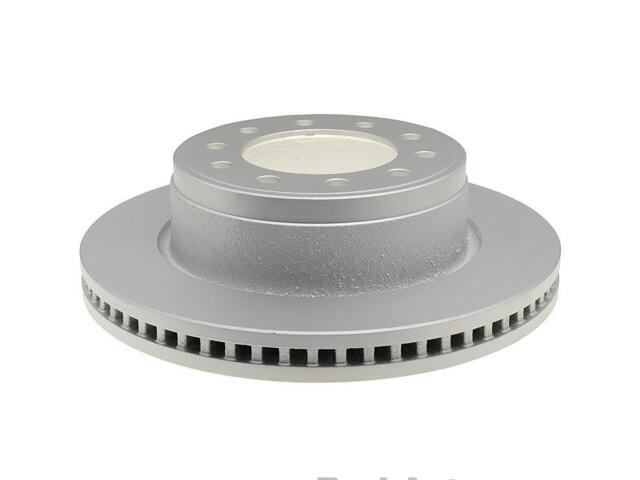

Rotor
ASTRA : 18A2734

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 6.7
Bolt Circle Diameter (MM): 170
Center Bore Diameter (IN): 4.9in
Center Bore Diameter (MM): 125mm
Center Hole Diameter (IN): 4.92
Center Hole Diameter (MM): 124.95
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Turned
Discard Thickness (IN): 1.472
Discard Thickness (MM): 37.4
Hat Finish: Turned
Height (IN): 4.4
Height (MM): 110.6
Inside Diameter (IN): 10.624
Inside Diameter (MM): 269.85
Length (IN): 16
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 6.693
Mounting Bolt Hole Circle Diameter (MM): 170
Mounting Bolt Hole Diameter (IN): 0.673
Mounting Bolt Hole Diameter (MM): 17.1
Nominal Thickness (IN): 1.54
Nominal Thickness (MM): 39.1
Outside Diameter (IN): 15.362
Outside Diameter (MM): 390.2
Overall Height (IN): 4.363
Overall Height (MM): 110.8
Overall Rotor Diameter (mm): 390.14mm
Pad Contact Surface Width (IN): 2.4
Pad Contact Surface Width (MM): 60
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 45.8
Width (IN): 15.88

适用车型

DODGE (2)

RAM (2)

4500 (2)

6.4L V8 (10)

6.7L L6 DIESEL Turbocharged (13)

5500 (2)

6.4L V8 (10)

6.7L L6 DIESEL Turbocharged (13)

OE号码

品牌	号码
OE	1928627*
