ASTRA
18A2731

第三方数据ASTRA : 18A2731

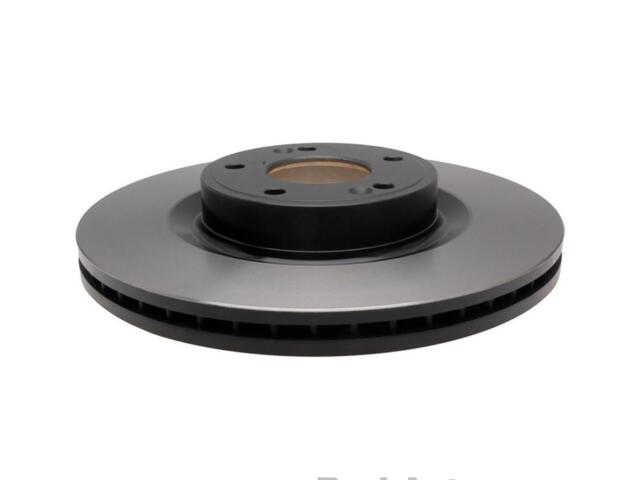

Rotor
ASTRA : 18A2731

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Center Bore Diameter (IN): 2.7in
Center Bore Diameter (MM): 69mm
Center Hole Diameter (IN): 2.717
Center Hole Diameter (MM): 69
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Ground
Discard Thickness (IN): 1.039
Discard Thickness (MM): 26.4
Hat Finish: Turned
Height (IN): 2.2
Height (MM): 56.5
Inside Diameter (IN): 7.933
Inside Diameter (MM): 201.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.495
Mounting Bolt Hole Diameter (MM): 12.55
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28
Outside Diameter (IN): 12.598
Outside Diameter (MM): 320
Overall Height (IN): 2.23
Overall Height (MM): 56.65
Overall Rotor Diameter (mm): 320.04mm
Pad Contact Surface Width (IN): 2.3
Pad Contact Surface Width (MM): 59.25
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

HYUNDAI (1)

OE号码

品牌	号码
OE	1925581*
