第三方数据ASTRA : 18A2727

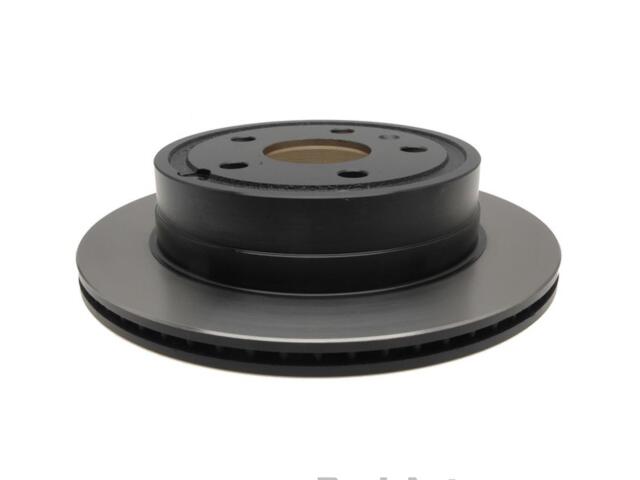

Rotor
ASTRA : 18A2727

Bolt Circle Diameter (IN): 4.72
Bolt Circle Diameter (MM): 120
Center Hole Diameter (IN): 2.65
Center Hole Diameter (MM): 67.3
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Directional or Non-Directional Brake Surface: No
Discard Thickness (IN): 0.724
Discard Thickness (MM): 18.4
Hat Finish: Painted
Height (IN): 4.2
Inside Diameter (IN): 8.49
Inside Diameter (MM): 215.65
Length (IN): 13.2
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.72
Mounting Bolt Hole Circle Diameter (MM): 119.9
Mounting Bolt Hole Diameter (IN): 0.632
Mounting Bolt Hole Diameter (MM): 16.05
Nominal Thickness (IN): 0.79
Nominal Thickness (MM): 20.05
Outside Diameter (IN): 11.926
Outside Diameter (MM): 302.9
Overall Height (IN): 2.822
Overall Height (MM): 71.7
Overall Rotor Diameter (mm): 303.02mm
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 16.4
Width (IN): 13.1

适用车型

CHEVROLET (1)

GMC (1)

OE号码

品牌	号码
OE	1925581*
