ASTRA
18A2726

第三方数据ASTRA : 18A2726

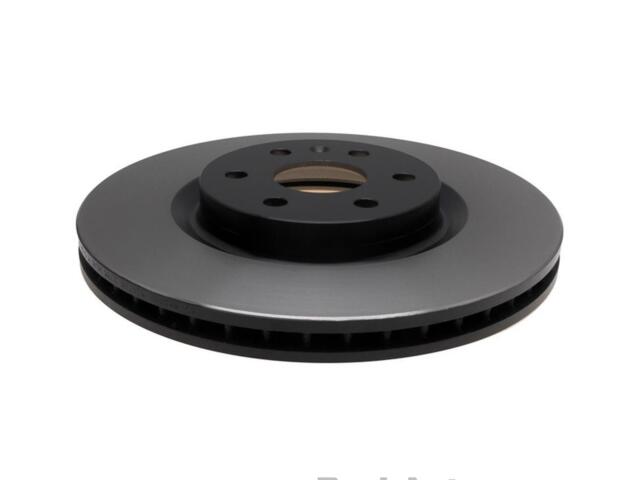

Rotor
ASTRA : 18A2726

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.7
Bolt Circle Diameter (MM): 120
Center Bore Diameter (IN): 2.7in
Center Bore Diameter (MM): 67.4mm
Center Hole Diameter (IN): 2.65
Center Hole Diameter (MM): 67.3
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Ground
Discard Thickness (IN): 1.063
Discard Thickness (MM): 27
Hat Finish: Turned
Height (IN): 2
Height (MM): 51.1
Inside Diameter (IN): 8.433
Inside Diameter (MM): 214.2
Length (IN): 14.1
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.72
Mounting Bolt Hole Circle Diameter (MM): 119.9
Mounting Bolt Hole Diameter (IN): 0.63
Mounting Bolt Hole Diameter (MM): 16
Nominal Thickness (IN): 1.183
Nominal Thickness (MM): 30.05
Outside Diameter (IN): 13.582
Outside Diameter (MM): 345
Overall Height (IN): 2.01
Overall Height (MM): 51.05
Overall Rotor Diameter (mm): 344.93mm
Pad Contact Surface Width (IN): 2.6
Pad Contact Surface Width (MM): 65.5
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 25.7
Width (IN): 14.1

适用车型

SAAB (1)

CADILLAC (1)

OE号码

品牌	号码
OE	1925581*
