ASTRA
18A2719SD

第三方数据ASTRA : 18A2719SD

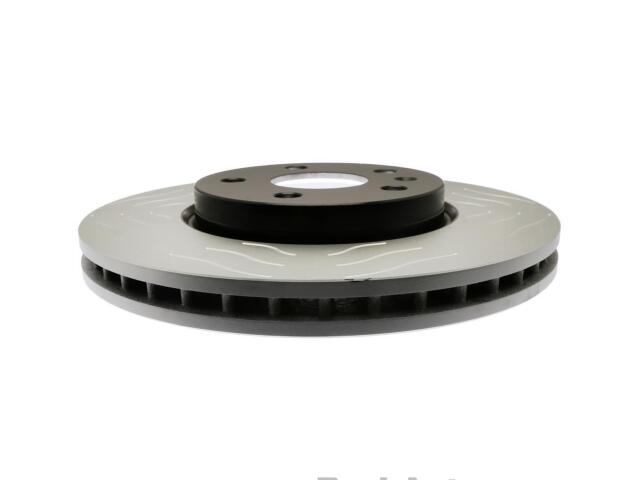

Rotor
ASTRA : 18A2719SD

Bolt Circle Diameter (IN): 4.724
Bolt Circle Diameter (MM): 120
Center Hole Diameter (IN): 2.654
Center Hole Diameter (MM): 67.4
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Bare
Discard Thickness (IN): 1.063
Discard Thickness (MM): 27
Height (IN): 2.008
Height (MM): 51
Inside Diameter (IN): 7.5
Inside Diameter (MM): 190.5
Length (IN): 13.3
Mounting Bolt Hole Circle Diameter (IN): 4.724
Mounting Bolt Hole Circle Diameter (MM): 120
Mounting Bolt Hole Diameter (IN): 0.638
Mounting Bolt Hole Diameter (MM): 16.2
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30
Outside Diameter (IN): 12.638
Outside Diameter (MM): 321
Overall Height (IN): 2.008
Overall Height (MM): 51
Solid Or Vented Type Rotor: Vented
Weight (lb): 22.6
Width (IN): 13.3

适用车型

BUICK (3)

REGAL (2)

LACROSSE (3)

ALLURE (2)

CHEVROLET (5)

MALIBU (3)

EQUINOX (3)

IMPALA (3)

MALIBU LIMITED (1)

CAMARO (1)

GMC (1)

OE号码

品牌	号码
OE	1938360*
