第三方数据ASTRA : 18A2719

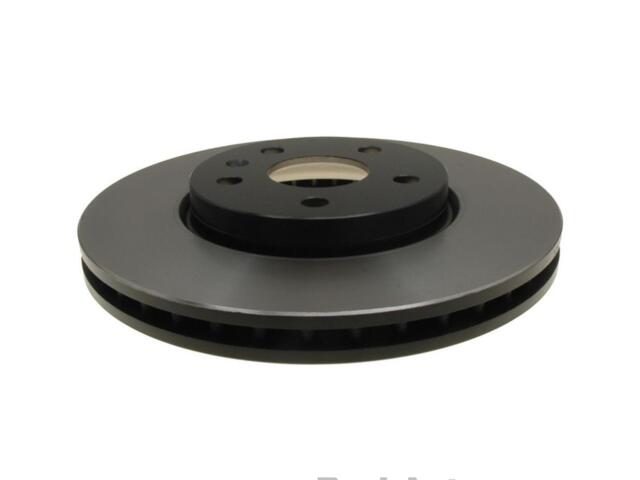

Rotor
ASTRA : 18A2719

Abs Tone Ring Included: No
Bearings Included: No
Bolt Circle Diameter (IN): 4.72
Bolt Circle Diameter (MM): 120
Center Hole Diameter (IN): 2.65
Center Hole Diameter (MM): 67.3
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.063
Discard Thickness (MM): 27
Hat Finish: Painted
Height (IN): 4.2
Inside Diameter (IN): 7.5
Inside Diameter (MM): 190.5
Length (IN): 13.2
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.72
Mounting Bolt Hole Circle Diameter (MM): 119.9
Mounting Bolt Hole Diameter (IN): 0.638
Mounting Bolt Hole Diameter (MM): 16.2
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30
Outside Diameter (IN): 12.638
Outside Diameter (MM): 321
Overall Height (IN): 2.008
Overall Height (MM): 51
Overall Rotor Diameter (mm): 321.06mm
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 22.45
Width (IN): 13.1

适用车型

BUICK (3)

REGAL (2)

LACROSSE (3)

ALLURE (2)

CHEVROLET (6)

MALIBU (3)

EQUINOX (3)

IMPALA (3)

MALIBU LIMITED (1)

CAMARO (1)

CORVETTE (2)

GMC (1)

OE号码

品牌	号码
OE	1928625*
