ASTRA
18A2712

第三方数据ASTRA : 18A2712

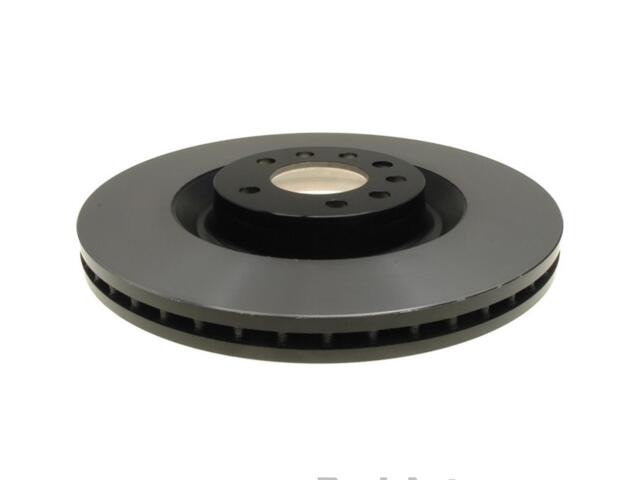

Rotor
ASTRA : 18A2712

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.3
Bolt Circle Diameter (MM): 110
Center Bore Diameter (IN): 2.8in
Center Bore Diameter (MM): 70mm
Center Hole Diameter (IN): 2.756
Center Hole Diameter (MM): 70
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Turned
Discard Thickness (IN): 1.083
Discard Thickness (MM): 27.5
Hat Finish: Turned
Height (IN): 1.8
Height (MM): 45.4
Inside Diameter (IN): 8.256
Inside Diameter (MM): 209.7
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.331
Mounting Bolt Hole Circle Diameter (MM): 110
Mounting Bolt Hole Diameter (IN): 0.554
Mounting Bolt Hole Diameter (MM): 14.05
Nominal Thickness (IN): 1.178
Nominal Thickness (MM): 29.9
Outside Diameter (IN): 13.576
Outside Diameter (MM): 344.85
Overall Height (IN): 1.787
Overall Height (MM): 45.4
Overall Rotor Diameter (mm): 344.93mm
Pad Contact Surface Width (IN): 2.7
Pad Contact Surface Width (MM): 67.4
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

SAAB (2)

OE号码

品牌	号码
OE	1926478*
