ASTRA
18A2710

第三方数据ASTRA : 18A2710

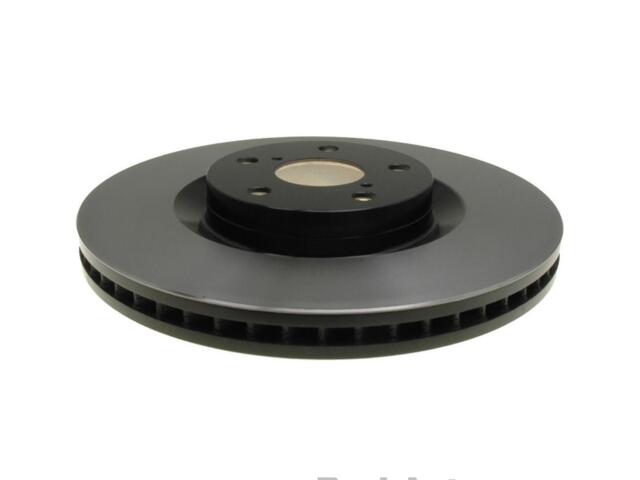

Rotor
ASTRA : 18A2710

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 114.3
Center Bore Diameter (IN): 2.4in
Center Bore Diameter (MM): 62mm
Center Hole Diameter (IN): 2.443
Center Hole Diameter (MM): 62.05
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Turned
Discard Thickness (IN): 1.102
Discard Thickness (MM): 28
Hat Finish: Turned
Height (IN): 2
Height (MM): 50.5
Inside Diameter (IN): 8.574
Inside Diameter (MM): 217.8
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 4.5
Mounting Bolt Hole Diameter (MM): 114.3
Nominal Thickness (IN): 1.182
Nominal Thickness (MM): 30
Outside Diameter (IN): 13.148
Outside Diameter (MM): 333.95
Overall Height (IN): 2.005
Overall Height (MM): 50.95
Overall Rotor Diameter (mm): 334.01mm
Pad Contact Surface Width (IN): 2.5
Pad Contact Surface Width (MM): 64.5
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 4.5
Stud/Lug Hole Diameter (MM): 114.3
Surface Type: Smooth

适用车型

LEXUS (4)

OE号码

品牌	号码
OE	1926478*
