ASTRA
18A2703

第三方数据ASTRA : 18A2703

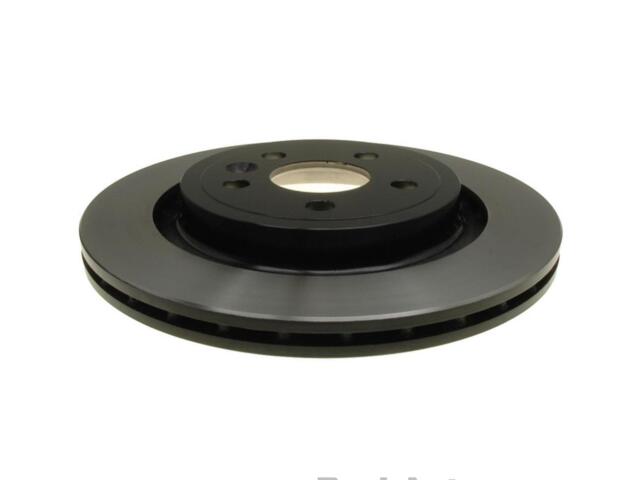

Rotor
ASTRA : 18A2703

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.3
Bolt Circle Diameter (MM): 108
Center Bore Diameter (IN): 2.5in
Center Bore Diameter (MM): 63.6mm
Center Hole Diameter (IN): 2.504
Center Hole Diameter (MM): 63.6
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Turned
Discard Thickness (IN): 0.787
Discard Thickness (MM): 20
Hat Finish: Turned
Height (IN): 1.6
Height (MM): 40.7
Inside Diameter (IN): 8.386
Inside Diameter (MM): 213
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.252
Mounting Bolt Hole Circle Diameter (MM): 108
Mounting Bolt Hole Diameter (IN): 0.62
Mounting Bolt Hole Diameter (MM): 15.75
Nominal Thickness (IN): 0.866
Nominal Thickness (MM): 22
Outside Diameter (IN): 11.89
Outside Diameter (MM): 302
Overall Height (IN): 1.604
Overall Height (MM): 40.75
Overall Rotor Diameter (mm): 302.01mm
Pad Contact Surface Width (IN): 1.8
Pad Contact Surface Width (MM): 44.5
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

VOLVO (5)

S60 (4)

S80 (4)

2.0L L4 Turbocharged (3)

3.0L L6 Turbocharged (6)

3.2L L6 (4)

4.4L V8 (4)

V60 (3)

XC70 (4)

2.0L L4 Turbocharged (2)

2.5L L5 Turbocharged (1)

3.0L L6 Turbocharged (7)

3.2L L6 (8)

V70 (1)

OE号码

品牌	号码
OE	1926477*
