ASTRA
18A2687

第三方数据ASTRA : 18A2687

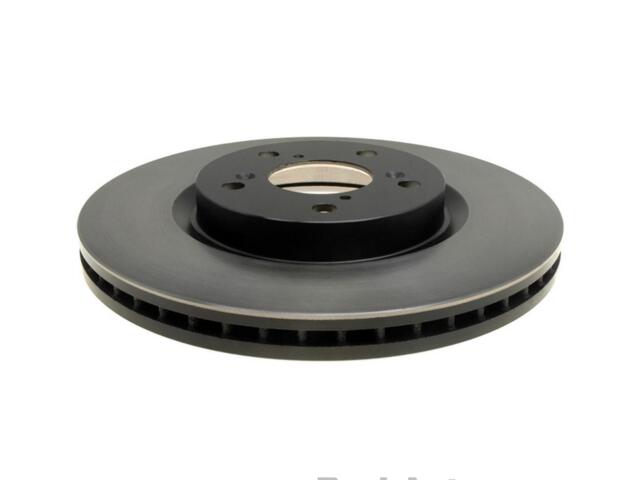

Rotor
ASTRA : 18A2687

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.7
Bolt Circle Diameter (MM): 120
Center Bore Diameter (IN): 2.8in
Center Bore Diameter (MM): 70.1mm
Center Hole Diameter (IN): 2.76
Center Hole Diameter (MM): 70.1
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Turned
Discard Thickness (IN): 1.024
Discard Thickness (MM): 26
Hat Finish: Turned
Height (IN): 1.9
Height (MM): 47.1
Inside Diameter (IN): 7.563
Inside Diameter (MM): 192.1
Length (IN): 13
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.72
Mounting Bolt Hole Circle Diameter (MM): 119.9
Mounting Bolt Hole Diameter (IN): 0.575
Mounting Bolt Hole Diameter (MM): 14.6
Nominal Thickness (IN): 1.103
Nominal Thickness (MM): 28
Outside Diameter (IN): 12.587
Outside Diameter (MM): 319.7
Overall Height (IN): 1.855
Overall Height (MM): 47.1
Overall Rotor Diameter (mm): 319.79mm
Pad Contact Surface Width (IN): 2.5
Pad Contact Surface Width (MM): 63.9
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 20.8
Width (IN): 13

适用车型

HONDA (1)

ACURA (1)

OE号码

品牌	号码
OE	1926437*
