ASTRA
18A2680SD

第三方数据ASTRA : 18A2680SD

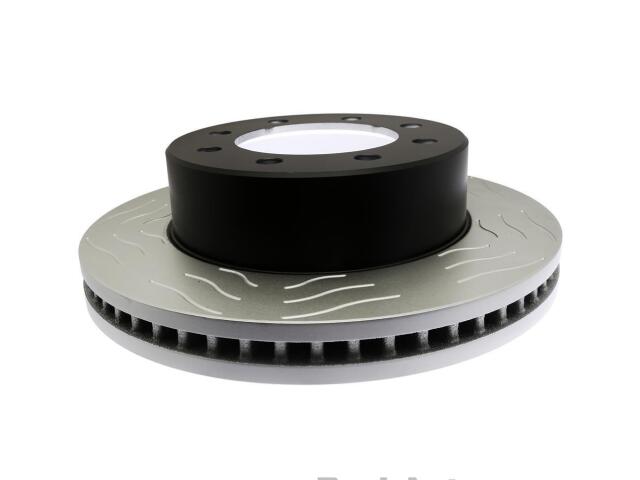

Rotor
ASTRA : 18A2680SD

Bolt Circle Diameter (IN): 6.5
Bolt Circle Diameter (MM): 165.1
Center Hole Diameter (IN): 5.197
Center Hole Diameter (MM): 132
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Bare
Discard Thickness (IN): 1.472
Discard Thickness (MM): 37.4
Height (IN): 4.016
Height (MM): 102
Inside Diameter (IN): 9.094
Inside Diameter (MM): 231
Length (IN): 15.7
Mounting Bolt Hole Circle Diameter (IN): 6.5
Mounting Bolt Hole Circle Diameter (MM): 165.1
Mounting Bolt Hole Diameter (IN): 0.654
Mounting Bolt Hole Diameter (MM): 16.6
Nominal Thickness (IN): 1.535
Nominal Thickness (MM): 39
Outside Diameter (IN): 14.173
Outside Diameter (MM): 360
Overall Height (IN): 4.016
Overall Height (MM): 102
Solid Or Vented Type Rotor: Vented
Weight (lb): 37.4
Width (IN): 15.1

适用车型

DODGE (2)

RAM (3)

1500 (3)

2500 (3)

5.7L V8 (9)

6.4L V8 (10)

6.7L L6 DIESEL Turbocharged (13)

3500 (3)

5.7L V8 (8)

6.4L V8 (10)

6.7L L6 DIESEL Turbocharged (13)

OE号码

品牌	号码
OE	1938361*
