ASTRA
18A2680

第三方数据ASTRA : 18A2680

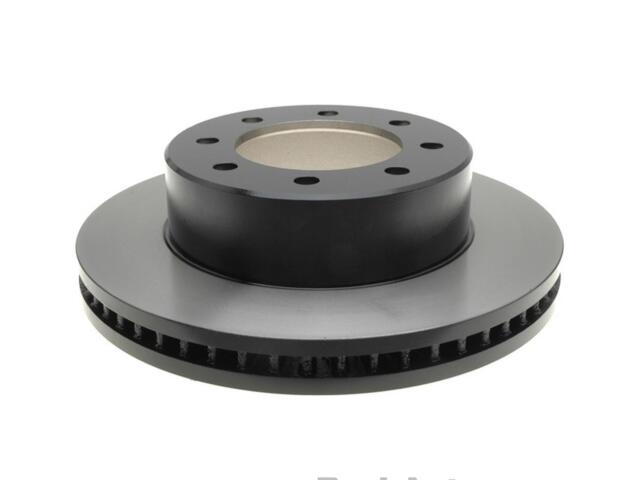

Rotor
ASTRA : 18A2680

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 6.5
Bolt Circle Diameter (MM): 165.1
Center Bore Diameter (IN): 4.8IN
Center Bore Diameter (MM): 123mm
Center Hole Diameter (IN): 4.84
Center Hole Diameter (MM): 122.95
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: No
Disc Finish: Ground
Discard Thickness (IN): 1.472
Discard Thickness (MM): 37.4
Hat Finish: Turned
Height (IN): 4
Height (MM): 102
Inside Diameter (IN): 8.813
Inside Diameter (MM): 223.85
Length (IN): 14.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 6.496
Mounting Bolt Hole Circle Diameter (MM): 165
Mounting Bolt Hole Diameter (IN): 0.655
Mounting Bolt Hole Diameter (MM): 16.65
Nominal Thickness (IN): 1.541
Nominal Thickness (MM): 39.15
Outside Diameter (IN): 14.175
Outside Diameter (MM): 360.05
Overall Height (IN): 4.02
Overall Height (MM): 102.1
Overall Rotor Diameter (mm): 360.17mm
Pad Contact Surface Width (IN): 2.7
Pad Contact Surface Width (MM): 68.15
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 37.4
Width (IN): 14.4

适用车型

DODGE (3)

RAM (4)

1500 (3)

2500 (3)

5.7L V8 (9)

6.4L V8 (10)

6.7L L6 DIESEL Turbocharged (13)

3500 (3)

5.7L V8 (8)

6.4L V8 (10)

6.7L L6 DIESEL Turbocharged (13)

4000 (2)

OE号码

品牌	号码
OE	1926147*
