第三方数据ASTRA : 18A2662PV

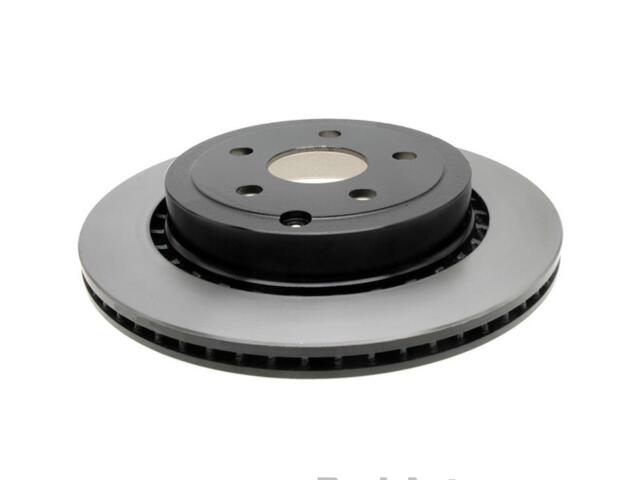

Rotor
ASTRA : 18A2662PV

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.724
Bolt Circle Diameter (MM): 120
Center Bore Diameter (IN): 2.6in
Center Bore Diameter (MM): 66mm
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Discard Thickness (IN): 0.79
Discard Thickness (MM): 20.05
Height (IN): 2.1
Height (MM): 53.3
Length (IN): 13.1
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.72
Mounting Bolt Hole Circle Diameter (MM): 119.9
Nominal Thickness (IN): 0.87
Nominal Thickness (MM): 22.1
Outside Diameter (IN): 12.7
Outside Diameter (MM): 322.5
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 18
Width (IN): 13.1

适用车型

CHEVROLET (2)

PONTIAC (1)

OE号码

品牌	号码
OE	1931074*
