ASTRA
18A2662

第三方数据ASTRA : 18A2662

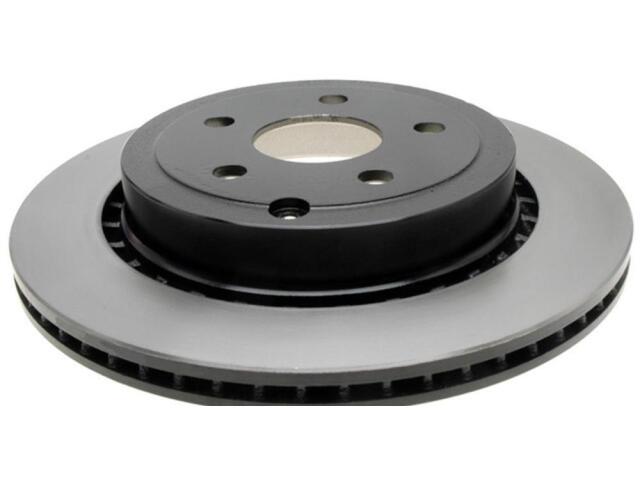

Rotor
ASTRA : 18A2662

Abs Tone Ring Included: No
Bolt Circle Diameter (IN): 4.7
Bolt Circle Diameter (MM): 120
Center Bore Diameter (IN): 2.7in
Center Bore Diameter (MM): 67.4mm
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Disc Finish: Turned
Discard Thickness (IN): 0.79
Discard Thickness (MM): 20.05
Hat Finish: Turned
Height (IN): 2.2
Height (MM): 55.4
Length (IN): 13.12
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.72
Mounting Bolt Hole Circle Diameter (MM): 119.9
Nominal Thickness (IN): 0.87
Nominal Thickness (MM): 22.1
Outside Diameter (IN): 12.8
Outside Diameter (MM): 324
Overall Rotor Diameter (mm): 324.1mm
Pad Contact Surface Width (IN): 1.8
Pad Contact Surface Width (MM): 46
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Weight (lb): 18.8
Width (IN): 13.12

适用车型

CHEVROLET (2)

PONTIAC (1)

OE号码

品牌	号码
OE	1924180*
